Safety belt front 4-door for BMW 5 Series E28 M535i (1987)

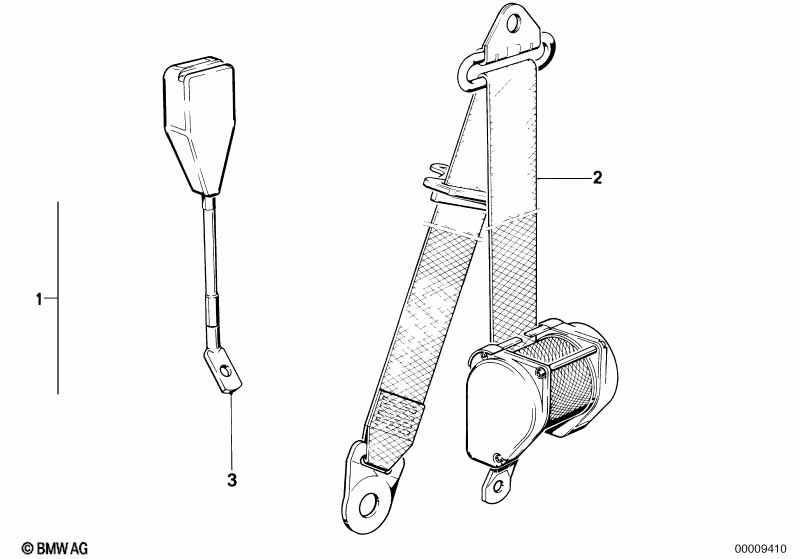

This Safety belt front 4-door technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt front | 2 | 72111873580 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with BMW sports seat |
=Yes |
|||||||||
| 01 | Safety belt front left | 1 | 72111925009 | ENDED | Shop at ECS Tuning | |||||
| 01 | Safety belt front right | 1 | 72111925010 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 01 | Safety belt front left | 1 | 72111925011 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO BMW SPORTS SEAT | ||||||||||
| 01 | Safety belt front right | 1 | 72111925012 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO BMW SPORTS SEAT | ||||||||||
| 02 | Upper belt front | 2 | 72111941442 | $111.63 | Shop at ECS Tuning | |||||
| For vehicles with BMW sports seat |
=Yes |
|||||||||
| 02 | Upper belt front left | 1 | 72111941463 | ENDED | Shop at ECS Tuning | |||||
| 02 | Upper belt, front right | 1 | 72111941464 | Shop at ECS Tuning | ||||||
| For vehicles with BMW Sport seat, electrically adjustable and Memory |
=Yes =Yes |
|||||||||
| 02 | Upper belt front | 2 | 72111945994 | ENDED | Shop at ECS Tuning | |||||
| 03 | Lower strap, front | 2 | 09/1986 | 72111941557 | $55.86 | Shop at ECS Tuning | ||||
| For vehicles with BMW sports seat |
=Yes |
|||||||||
| 03 | Lower strap, front | 2 | 09/1986 | 72111941405 | $41.46 | ENDED | Shop at ECS Tuning | |||
| 03 | Lower strap, front | 2 | 09/1986 | 72111941407 | Shop at ECS Tuning | |||||
| For vehicles with BMW Sport seat, electrically adjustable and Memory |
=Yes =Yes |
|||||||||
| 03 | Lower strap, front | 2 | 09/1986 | 72111945992 | $97.30 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
