Front safety belt mounting parts for BMW 3 Series E30 M3 (1990)

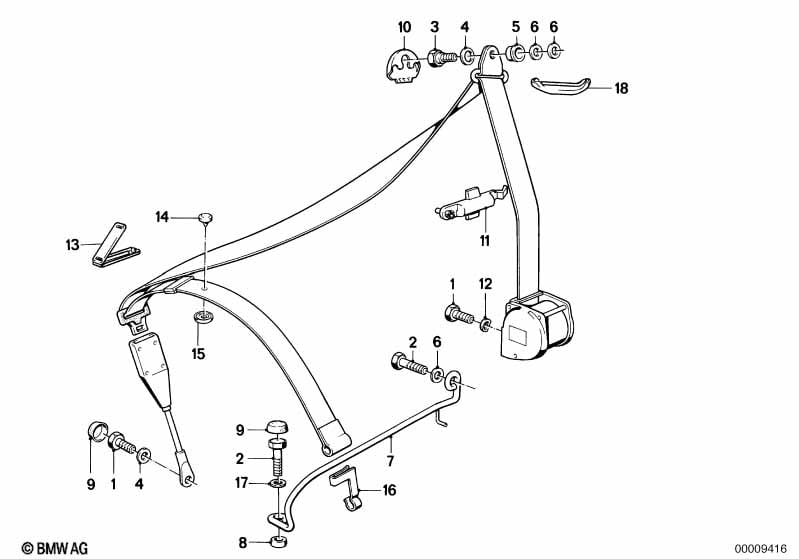

This Front safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | 7/16" 20MM | 4 | 72111861932 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt | 7/16" 30MM | 2 | 72111850076 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex bolt | 7/16" 42MM | 2 | 09/1984 | 72111904775 | $1.55 | Shop at ECS Tuning | |||
| 06 | Washer | X | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 07 | Slide rail left | 1 | 72111929419 | $30.09 | ENDED | Shop at ECS Tuning | ||||
| 07 | Slide rail right | 1 | 72111929420 | $17.75 | Shop at ECS Tuning | |||||
| 08 | Spacer bush | 2 | 72111813915 | $0.72 | Shop at ECS Tuning | |||||
| 09 | Covering cap | 2 | 72111929421 | $0.48 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering cap | 2 | 09/1984 | 72111904665 | $0.90 | Shop at ECS Tuning | ||||
| 11 | Sliding piece | 2 | 72111904962 | $1.23 | Shop at ECS Tuning | |||||
| 12 | Wave washer | 11,2 / 19 | 2 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 17 | Washer | 2 | 72111933537 | $0.85 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
