Front safety belt mounting parts for BMW 3 Series E30 318i (1994)

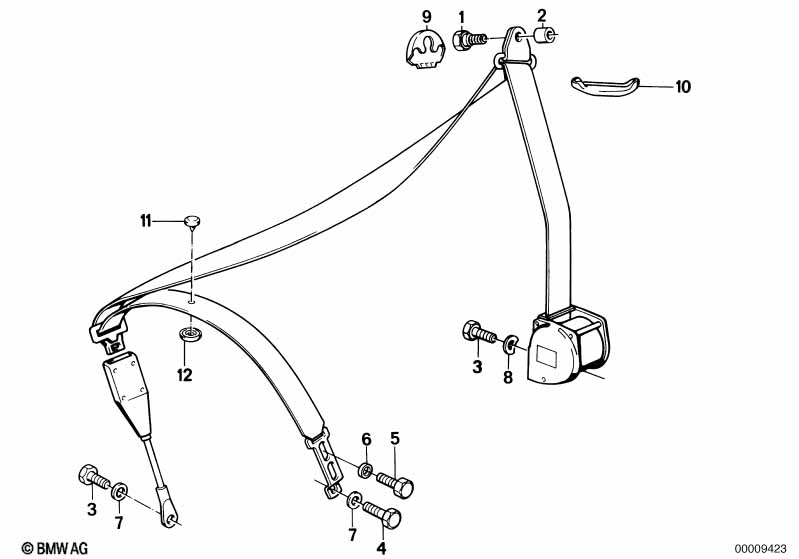

This Front safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | 7/16" 42MM | 2 | 72111904775 | $1.55 | Shop at ECS Tuning | ||||
| 02 | Spacer sleeve | 2 | 72111848465 | $1.37 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | 7/16" 20MM | 4 | 72111861932 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | 7/16X30 | 2 | 72118157617 | $0.92 | Shop at ECS Tuning | ||||
| 06 | Bush | 2 | 72111933796 | $0.72 | ENDED | Shop at ECS Tuning | ||||
| 07 | Washer | 4 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 08 | Wave washer | 11,2 / 19 | 2 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 09 | Covering cap | 2 | 72111904665 | $0.90 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Front safety belt mounting parts?
- This technical diagram illustrates the Front safety belt mounting parts within the Restraint system and Accessories group for the 3 Series E30 318i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #72111904775).
- Which models use the hardware listed in this Front safety belt mounting parts?
- The hardware and components featured in the Front safety belt mounting parts are specific to the 3 Series E30 318i produced during 1994. These technical specifications ensure that parts like the Hex bolt (72111904775) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front safety belt mounting parts assembly?
- Each item in the Front safety belt mounting parts corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 72111904775 for the Restraint system and Accessories section.
