Safety belt rear for BMW 5 Series E34 535i (1993)

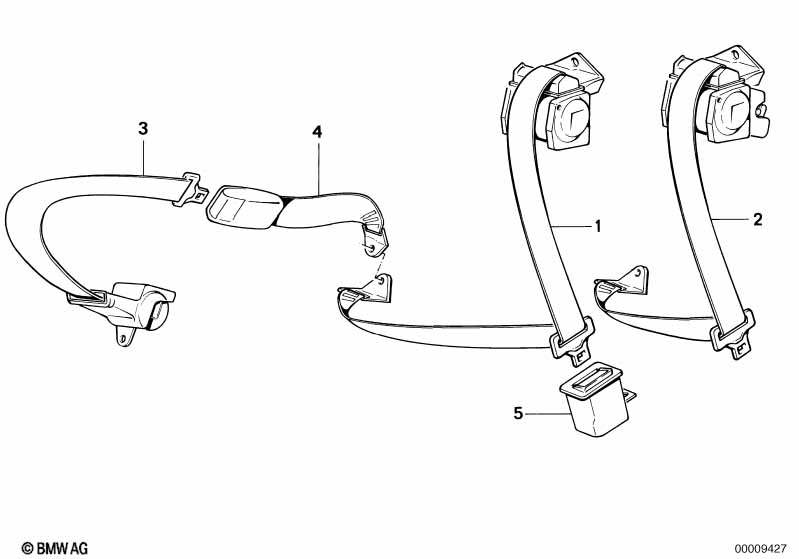

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear upper belt with child protection | SCHWARZ | 2 | 72118208835 | $130.06 | Shop at ECS Tuning | ||||
| 01 | Rear upper belt with child protection | SILBERGRAU | 2 | 72118208899 | $130.06 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Rear upper belt with child protection | PERGAMENT | 2 | 72118208903 | $130.06 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Upper belt rear left | 2 | 09/1992 | 09/1995 | 72111950515 | +core | Shop at ECS Tuning | |||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 02 | Rear upper belt with child protection | SCHWARZ | 2 | 72118208892 | $234.34 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear upper belt with child protection | SILBERGRAU | 2 | 09/1992 | 72118208876 | $234.34 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Rear upper belt with child protection | PERGAMENT | 2 | 09/1992 | 72118208896 | $185.26 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Safety belt | SCHWARZ | 1 | 72111944442 | $59.95 | Shop at ECS Tuning | ||||
| 03 | Safety belt | SILBERGRAU | 1 | 09/1992 | 72118167882 | $59.95 | Shop at ECS Tuning | |||
| 03 | Safety belt | 1 | 09/1992 | 72118167892 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Safety belt | 1 | 09/1992 | 72118167888 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 03 | Safety belt | SCHWARZ | 1 | 72118117494 | $49.38 | ENDED | Shop at ECS Tuning | |||
| 03 | Safety belt | PERGAMENT | 1 | 09/1992 | 72118167942 | $49.38 | ENDED | Shop at ECS Tuning | ||
| 03 | Safety belt | SILBERGRAU | 1 | 09/1992 | 72118167946 | $70.48 | ENDED | Shop at ECS Tuning | ||
| 04 | Lower strap, rear | SCHWARZ | 1 | 72111944441 | $35.40 | Shop at ECS Tuning | ||||
| 04 | Lower strap, rear | PERGAMENT | 1 | 09/1992 | 72118167879 | $35.40 | ENDED | Shop at ECS Tuning | ||
| 04 | Lower strap, rear | 1 | 09/1992 | 72118167887 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lower strap, rear | SILBERGRAU | 1 | 09/1992 | 72118167881 | $35.40 | ENDED | Shop at ECS Tuning | ||
| 04 | Lower strap, rear | 1 | 09/1992 | 72118167891 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 04 | Lower strap, rear | SCHWARZ | 1 | 72118107583 | $35.40 | Shop at ECS Tuning | ||||
| 04 | Lower strap, rear | PERGAMENT | 1 | 09/1992 | 72118167935 | $35.40 | ENDED | Shop at ECS Tuning | ||
| 04 | Lower strap, rear | SILBERGRAU | 1 | 09/1992 | 72118167941 | $35.40 | ENDED | Shop at ECS Tuning | ||
| 05 | Lower belt rear left | 1 | 72118126521 | Shop at ECS Tuning | ||||||
| 05 | Lower belt rear right | 1 | 72118126522 | Shop at ECS Tuning | ||||||
| For vehicles with Headrest elect.adjust.rear |
=Yes |
|||||||||
| 05 | Lower belt rear left | AUTOFLUG | 1 | 72118107607 | $63.95 | Shop at ECS Tuning | ||||
| 05 | Lower belt rear right | AUTOFLUG | 1 | 72118107608 | $63.95 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 535i Safety belt rear?
- This technical diagram illustrates the Safety belt rear within the Restraint system and Accessories group for the 5 Series E34 535i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Rear upper belt with child protection (Part #72118208835).
- Which models use the hardware listed in this Safety belt rear?
- The hardware and components featured in the Safety belt rear are specific to the 5 Series E34 535i produced during 1993. These technical specifications ensure that parts like the Rear upper belt with child protection (72118208835) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt rear assembly?
- Each item in the Safety belt rear corresponds to the numbered list below the illustration. For the 5 Series E34 535i, you can identify the Rear upper belt with child protection by locating its position on the schematic, which then links to the official BMW part number 72118208835 for the Restraint system and Accessories section.
