Rear safety belt mounting parts for BMW 5 Series E34 520i (1995)

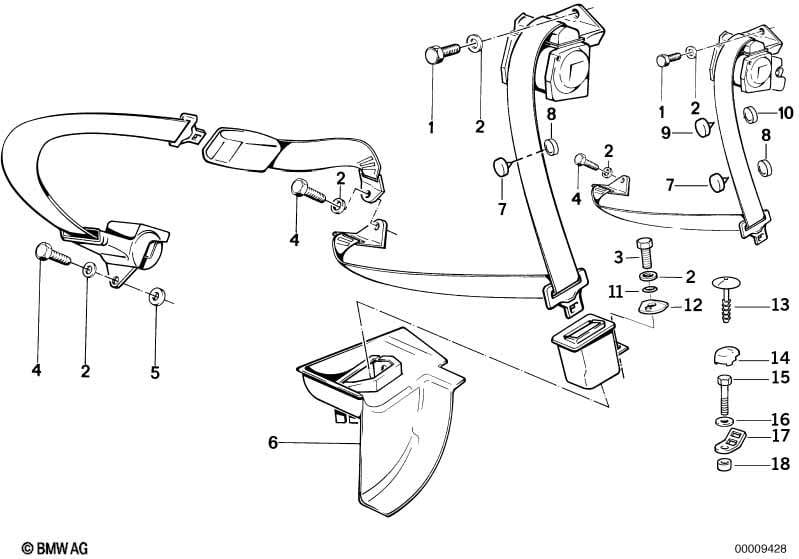

This Rear safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | 7/16X30 | 2 | 72118157617 | $0.92 | Shop at ECS Tuning | ||||
| 02 | Washer | A13/HV-ZNS | 2 | 07/1996 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Washer | 4 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 02 | Circlip | 2 | 72111969175 | $0.53 | Shop at ECS Tuning | |||||
| 03 | Collar screw | 7/16"X30 | 2 | 09/1990 | 72118102379 | $3.73 | ENDED | Shop at ECS Tuning | ||
| 03 | Collar screw | 7/16"X34 | 2 | 09/1990 | 72118126520 | $2.15 | ENDED | Shop at ECS Tuning | ||
| 04 | Hex bolt | 7/16X30 | 2 | 72118157617 | $0.92 | Shop at ECS Tuning | ||||
| 06 | Covering left | SCHWARZ | 1 | 72111944497 | $12.03 | Shop at ECS Tuning | ||||
| 06 | Covering right | SCHWARZ | 1 | 72111944498 | $12.43 | Shop at ECS Tuning | ||||
| 06 | Covering right | SILBER | 1 | 72111944500 | $12.43 | Shop at ECS Tuning | ||||
| 06 | Covering left | CARDINALROT | 1 | 72111944511 | $9.15 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | CARDINALROT | 1 | 72111944512 | $12.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | CHAMPAGNER | 1 | 72112234772 | $9.15 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering left | SCHWARZ | 2 | 09/1990 | 72111944497 | $12.03 | Shop at ECS Tuning | |||
| 06 | Covering right | SCHWARZ | 2 | 09/1990 | 72111944498 | $12.43 | Shop at ECS Tuning | |||
| 06 | Covering left | SILBER | 2 | 09/1990 | 72111944499 | $12.43 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering right | SILBER | 2 | 09/1990 | 72111944500 | $12.43 | Shop at ECS Tuning | |||
| 06 | Covering left | PERGAMENT | 1 | 09/1990 | 72118139855 | $12.43 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering right | PERGAMENT | 1 | 09/1990 | 72118139856 | $12.73 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering left | SILBERGRAU HELL | 1 | 09/1990 | 72118148639 | $12.73 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering right | SILBERGRAU HELL | 1 | 09/1990 | 72118148640 | $12.43 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 06 | Covering left | SCHWARZ | 1 | 72118107595 | $9.15 | Shop at ECS Tuning | ||||
| 06 | Covering right | SCHWARZ | 1 | 72118107596 | $9.15 | Shop at ECS Tuning | ||||
| 06 | Covering left | CARDINALROT | 1 | 72118107605 | $9.15 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | CARDINALROT | 1 | 72118107606 | $9.15 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering left | SCHWARZ | 2 | 09/1990 | 72118107595 | $9.15 | Shop at ECS Tuning | |||
| 06 | Covering right | SCHWARZ | 2 | 09/1990 | 72118107596 | $9.15 | Shop at ECS Tuning | |||
| 06 | Covering left | SILBER | 2 | 09/1990 | 72118107597 | $13.62 | Shop at ECS Tuning | |||
| 06 | Covering right | SILBER | 2 | 09/1990 | 72118107598 | $15.98 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering left | PERGAMENT | 1 | 09/1990 | 72118139843 | $12.73 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering right | PERGAMENT | 1 | 09/1990 | 72118139844 | $12.43 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering left | SILBERGRAU HELL | 1 | 09/1990 | 72118148635 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | SILBERGRAU HELL | 1 | 09/1990 | 72118148636 | Shop at ECS Tuning | ||||
| 11 | Ring | FA.AUTOFLUG | 2 | 72118110987 | Shop at ECS Tuning | |||||
| 12 | Plate left | FA.AUTOFLUG | 1 | 72111973159 | $5.08 | ENDED | Shop at ECS Tuning | |||
| 12 | Plate right | FA.AUTOFLUG | 1 | 72111973160 | $2.05 | ENDED | Shop at ECS Tuning | |||
| 12 | Plate left | FA.AUTOFLUG | 1 | 72118126525 | ENDED | Shop at ECS Tuning | ||||
| 12 | Plate right | FA.AUTOFLUG | 1 | 72118126526 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Child seat |
=Yes |
|||||||||
| 13 | Blind plug | SCHWARZ | 3 | 51711852586 | $0.73 | Shop at ECS Tuning | ||||
| 14 | Covering cap | SCHWARZ | 3 | 72118187598 | $0.73 | Shop at ECS Tuning | ||||
| 15 | Screw | 5/16X35 | 3 | 72111922499 | $1.20 | Shop at ECS Tuning | ||||
| 16 | Washer | 8,4X16X1,6-ZNNV | 3 | 07119907030 | Shop at ECS Tuning | |||||
| 17 | Support, child seat | SCHWARZ | 3 | 72118187599 | $5.56 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
