Rear safety belt mounting parts for BMW 7 Series E23 733i (1982)

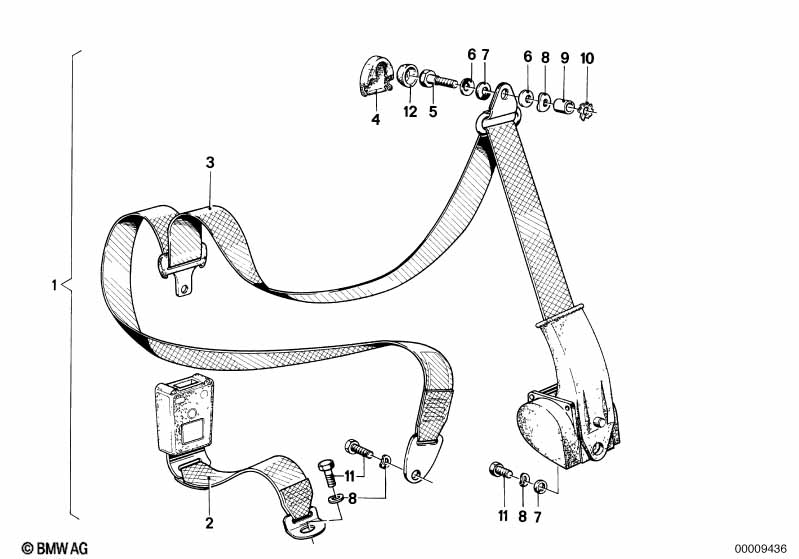

This Rear safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Covering cap | SCHWARZ | X | 09/1982 | 72111828567 | $3.11 | Shop at ECS Tuning | |||
| 05 | Screw | X | 09/1982 | 72111845045 | $1.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Stop disk | X | 09/1982 | 72111845046 | $0.22 | Shop at ECS Tuning | ||||
| 07 | Washer | X | 09/1982 | 72111808673 | $0.37 | Shop at ECS Tuning | ||||
| 09 | Bush | X | 09/1982 | 72111852907 | $4.74 | ENDED | Shop at ECS Tuning | |||
| 11 | Hex bolt | 7/16X30 | X | 09/1982 | 72118157617 | $0.92 | Shop at ECS Tuning | |||
| 12 | Covering cap | ANTHRAZIT | X | 09/1982 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Rear safety belt mounting parts?
- This technical diagram illustrates the Rear safety belt mounting parts within the Restraint system and Accessories group for the 7 Series E23 733i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Covering cap (Part #72111828567).
- Which models use the hardware listed in this Rear safety belt mounting parts?
- The hardware and components featured in the Rear safety belt mounting parts are specific to the 7 Series E23 733i produced during 1982. These technical specifications ensure that parts like the Covering cap (72111828567) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear safety belt mounting parts assembly?
- Each item in the Rear safety belt mounting parts corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Covering cap by locating its position on the schematic, which then links to the official BMW part number 72111828567 for the Restraint system and Accessories section.
