Safety belt rear for BMW 7 Series E23 728 (1979)

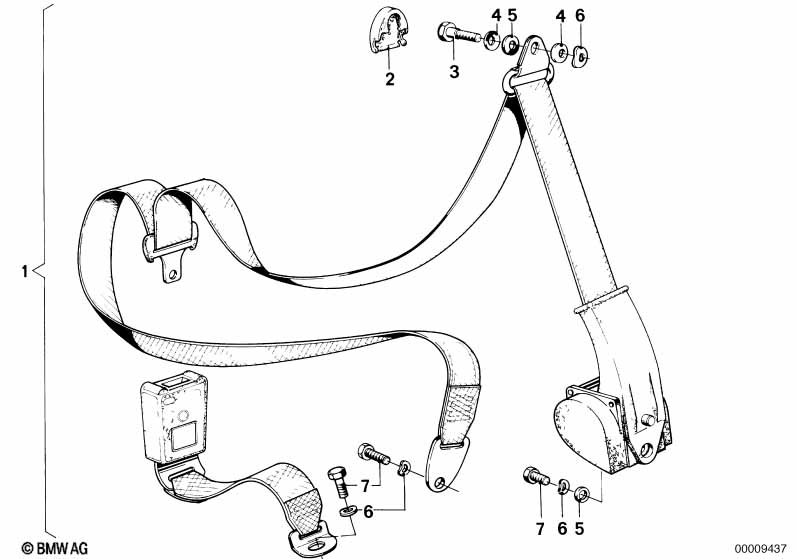

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt rear | 2 | 04/1983 | 72113906329 | Shop at ECS Tuning | |||||
| 02 | Covering cap | SCHWARZ | 2 | 04/1983 | 72111828567 | $3.11 | Shop at ECS Tuning | |||
| 03 | Screw | 2 | 04/1983 | 72111845045 | $1.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Stop disk | 4 | 04/1983 | 72111845046 | $0.22 | Shop at ECS Tuning | ||||
| 05 | Washer | 4 | 04/1983 | 72111808673 | $0.37 | Shop at ECS Tuning | ||||
| 06 | Wave washer | 11,2 / 19 | 2 | 04/1983 | 72111808672 | $0.17 | Shop at ECS Tuning | |||
| 07 | Hex bolt | 7/16X30 | 2 | 04/1983 | 72118157617 | $0.92 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
