Rear safety belt mounting parts for BMW 3 Series E21 320i (1979)

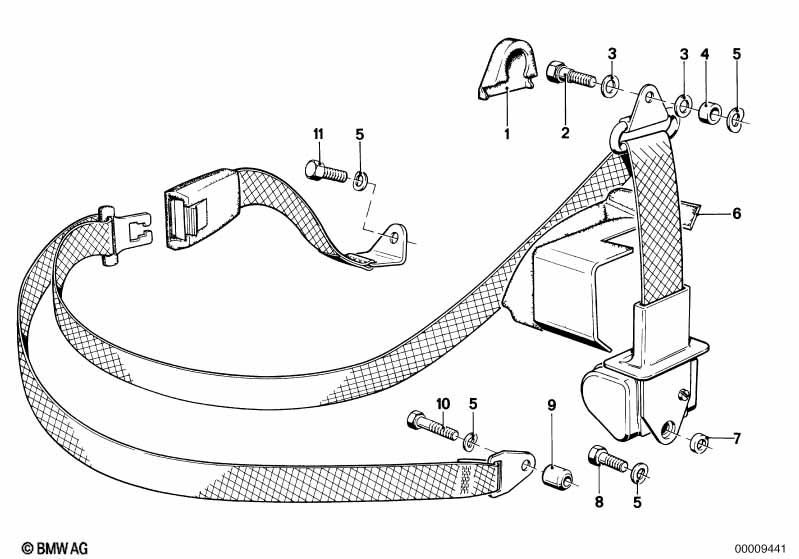

This Rear safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering cap | SCHWARZ | 2 | 09/1978 | 72111828567 | $3.11 | Shop at ECS Tuning | |||
| 02 | Screw | 2 | 09/1978 | 72111845045 | $1.43 | ENDED | Shop at ECS Tuning | |||
| 03 | Stop disk | 4 | 09/1978 | 72111845046 | $0.22 | Shop at ECS Tuning | ||||
| 04 | Spacer bush | 2 | 09/1978 | 72111802803 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 11,2 / 19 | 8 | 09/1978 | 04/1981 | 72111808672 | $0.17 | Shop at ECS Tuning | ||
| 06 | Covering left | 1 | 09/1978 | 51461856971 | $8.04 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering right | 1 | 09/1978 | 51461856972 | $8.04 | ENDED | Shop at ECS Tuning | |||
| 07 | Washer | 2 | 09/1978 | 72111840586 | $0.45 | Shop at ECS Tuning | ||||
| 08 | Collar screw | 7/16"X22 | 2 | 09/1978 | 72111822963 | $5.93 | ENDED | Shop at ECS Tuning | ||
| 09 | Spacer bush | 2 | 09/1978 | 72111831506 | $2.38 | Shop at ECS Tuning | ||||
| 10 | Screw | 7/16"X35 | 2 | 09/1978 | 72111814958 | $1.03 | ENDED | Shop at ECS Tuning | ||
| 11 | Hex bolt | 7/16X30 | 2 | 09/1978 | 72118157617 | $0.92 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
