Safety belt rear for BMW 7 Series E23 728iS (1982)

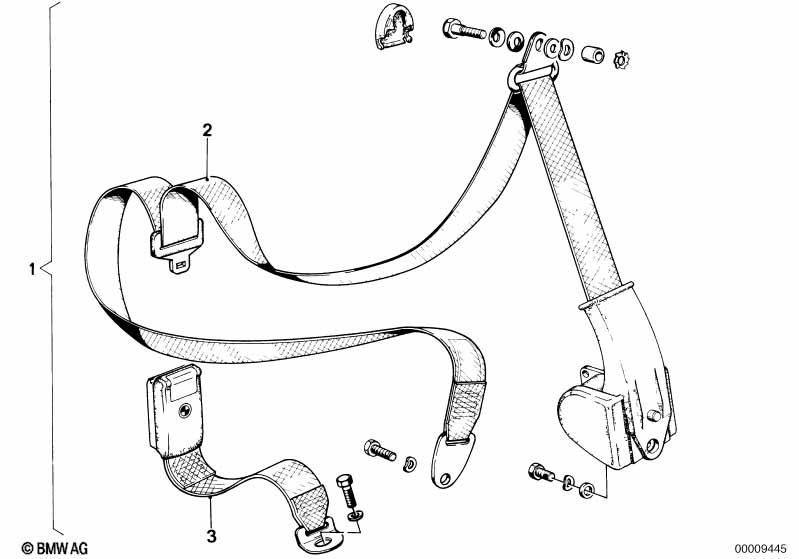

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Lower strap, rear | AUTOFLUG | 2 | 03/1979 | 09/1982 | 72111868996 | $32.37 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728iS Safety belt rear?
- This technical diagram illustrates the Safety belt rear within the Restraint system and Accessories group for the 7 Series E23 728iS produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Lower strap, rear (Part #72111868996).
- Which models use the hardware listed in this Safety belt rear?
- The hardware and components featured in the Safety belt rear are specific to the 7 Series E23 728iS produced during 1982. These technical specifications ensure that parts like the Lower strap, rear (72111868996) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt rear assembly?
- Each item in the Safety belt rear corresponds to the numbered list below the illustration. For the 7 Series E23 728iS, you can identify the Lower strap, rear by locating its position on the schematic, which then links to the official BMW part number 72111868996 for the Restraint system and Accessories section.
