Safety belt rear for BMW 6 Series E24 635CSi (1989)

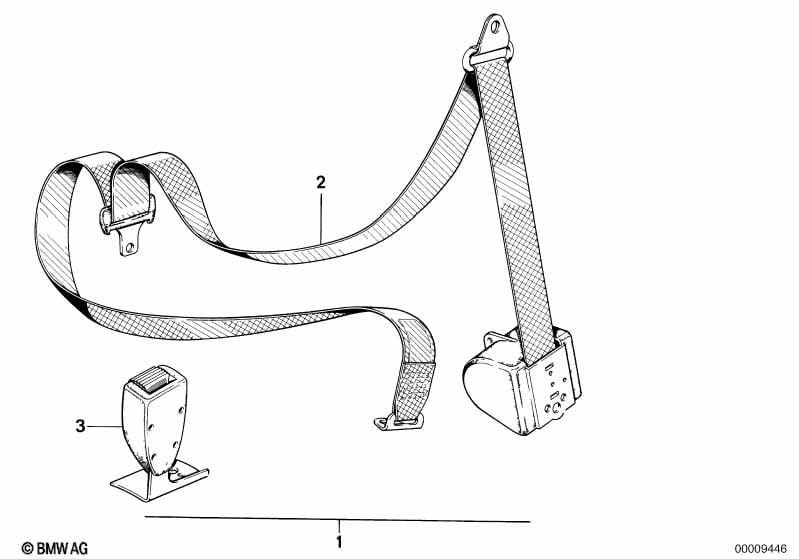

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt rear left | 1 | 08/1979 | 72111875233 | ENDED | Shop at ECS Tuning | ||||
| 01 | Safety belt rear right | 1 | 08/1979 | 72111875234 | $131.69 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Safety belt rear left | 1 | 08/1979 | 72111875247 | ENDED | Shop at ECS Tuning | ||||
| 01 | Safety belt rear right | 1 | 08/1979 | 72111875248 | ENDED | Shop at ECS Tuning | ||||
| 02 | Upper belt rear | 1 | 08/1979 | 72111941533 | $147.93 | Shop at ECS Tuning | ||||
| 03 | Catch rear left | 1 | 09/1986 | 72111941545 | $152.16 | ENDED | Shop at ECS Tuning | |||
| 03 | Catch rear left | 1 | 09/1986 | 72111941545 | $152.16 | ENDED | Shop at ECS Tuning | |||
| 03 | Catch rear right | 1 | 09/1986 | 72111941546 | $152.16 | ENDED | Shop at ECS Tuning | |||
| 03 | Catch rear right | 1 | 09/1986 | 72111941546 | $152.16 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Safety belt rear?
- This technical diagram illustrates the Safety belt rear within the Restraint system and Accessories group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Safety belt rear left (Part #72111875233).
- Which models use the hardware listed in this Safety belt rear?
- The hardware and components featured in the Safety belt rear are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Safety belt rear left (72111875233) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt rear assembly?
- Each item in the Safety belt rear corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Safety belt rear left by locating its position on the schematic, which then links to the official BMW part number 72111875233 for the Restraint system and Accessories section.
