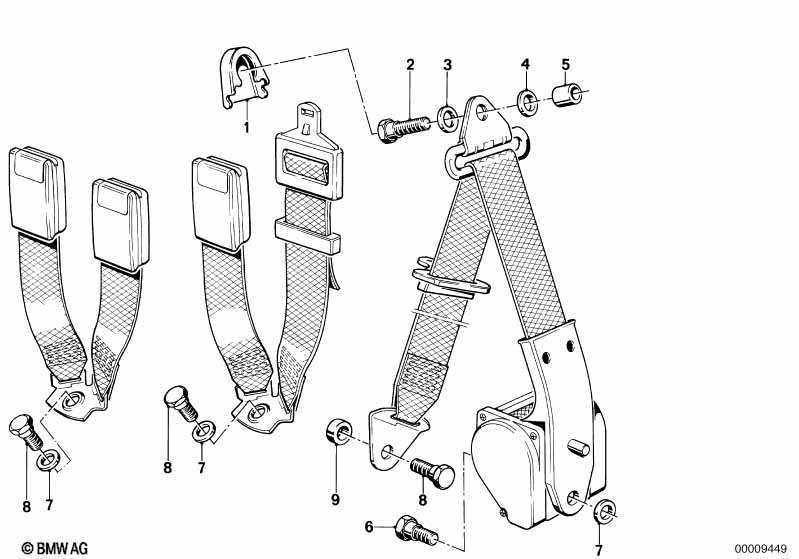

Rear safety belt mounting parts for BMW 5 Series E28 528e (1987)
This Rear safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering cap | SCHWARZ | 2 | 09/1982 | 72111828567 | $3.11 | Shop at ECS Tuning | |||

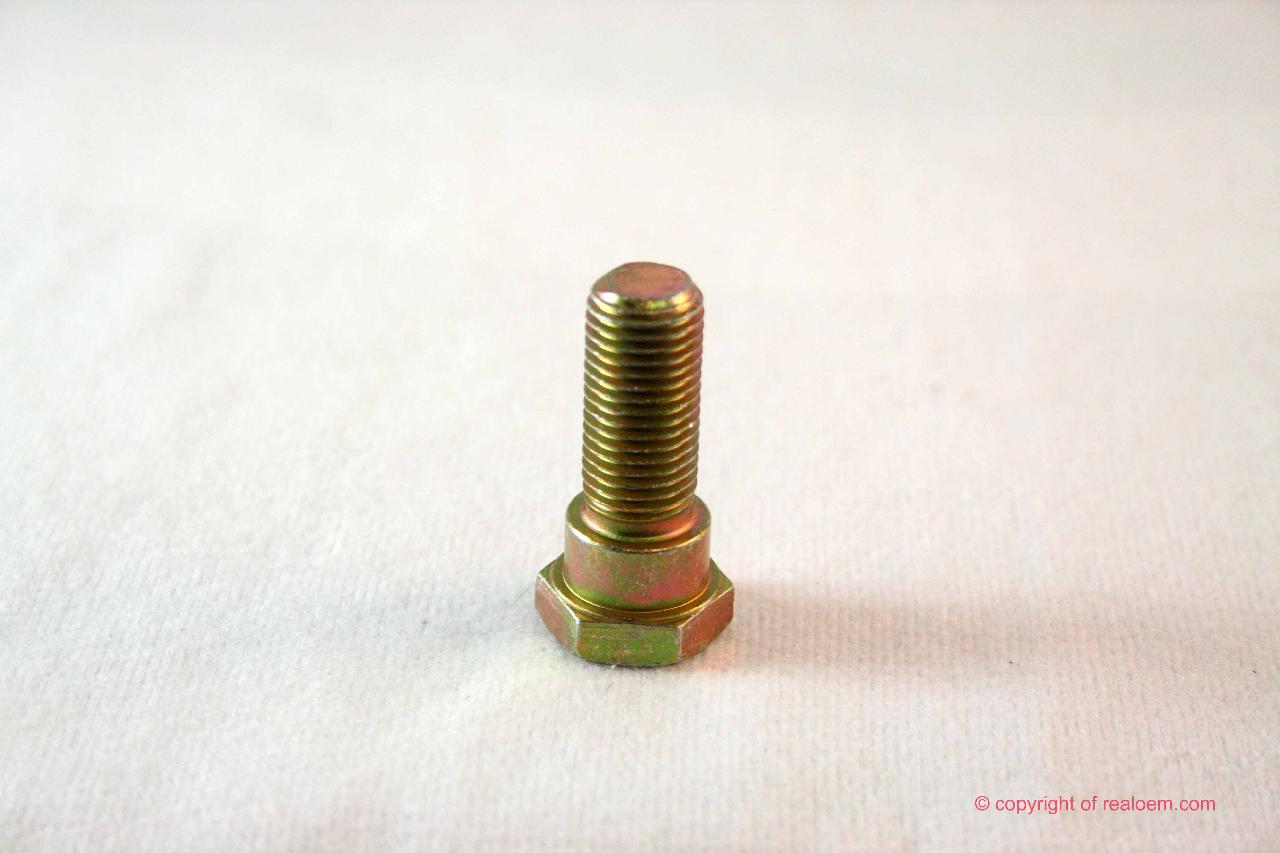

| 02 | Screw | 2 | 09/1982 | 72111845045 | $1.43 | ENDED | Shop at ECS Tuning | |||

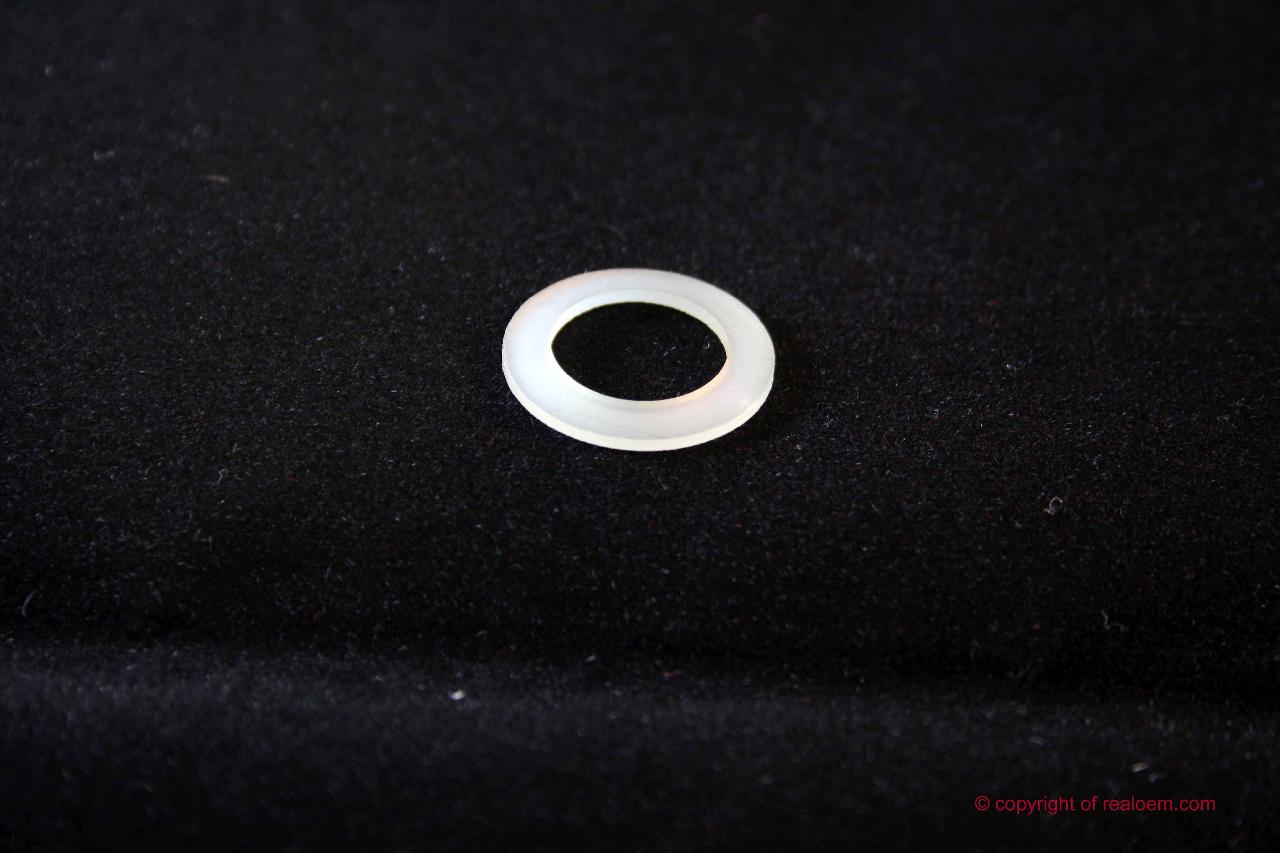

| 03 | Stop disk | 2 | 09/1982 | 72111845046 | $0.22 | Shop at ECS Tuning | ||||
| 04 | Shim | 2 | 09/1982 | 72111859876 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Spacer bush | 2 | 09/1982 | 72111802803 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | 7/16X30 | 2 | 09/1982 | 72118157617 | $0.92 | Shop at ECS Tuning | |||
| 07 | Washer | 6 | 09/1982 | 72111808673 | $0.37 | Shop at ECS Tuning | ||||
| 08 | Collar screw | 7/16"X22 | 4 | 09/1982 | 72111822963 | $5.93 | ENDED | Shop at ECS Tuning | ||

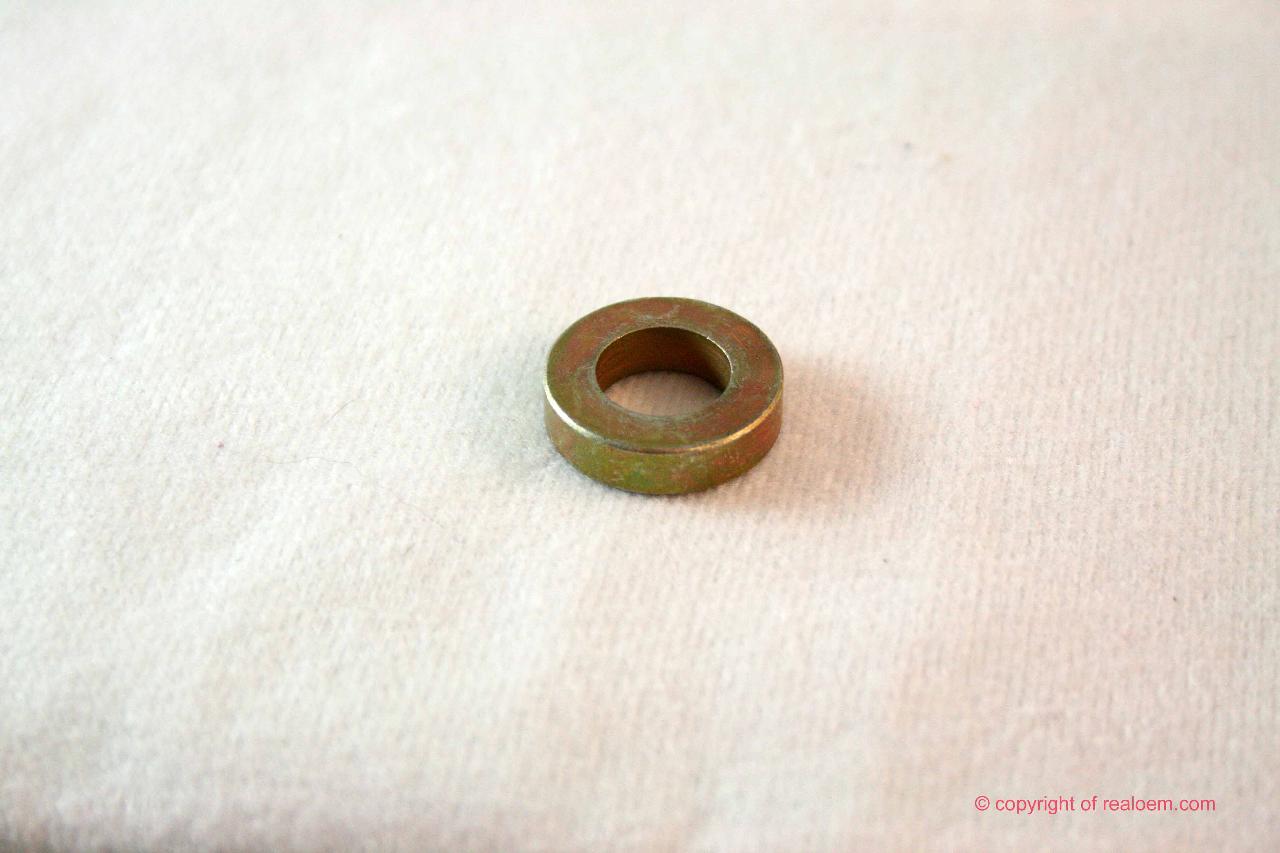

| 09 | Spacer bush | 2 | 09/1982 | 72111813915 | $0.72 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
