Flag holder for BMW 7 Series E38 730i (1996)

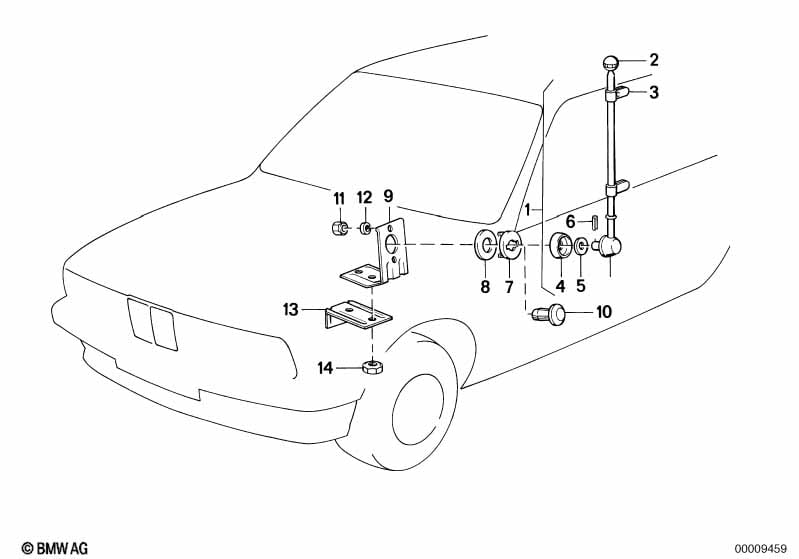

This Flag holder technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flag holder | 2 | 72601878398 | $280.78 | Shop at ECS Tuning | |||||
| 02 | Ball | 2 | 72601827194 | $53.24 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clamp | 4 | 72601827195 | $66.40 | Shop at ECS Tuning | |||||
| 04 | Protection cap | 2 | 72601827197 | $46.31 | Shop at ECS Tuning | |||||
| 05 | Diaphragm spring | B28 | X | 07119936870 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Base plate | 2 | 72601827193 | $98.49 | ENDED | Shop at ECS Tuning | ||||
| 08 | Base | 1 | 72608131715 | $11.38 | Shop at ECS Tuning | |||||
| 09 | Reinforcement left | 1 | 72608131783 | $15.51 | Shop at ECS Tuning | |||||
| 09 | Reinforcement right | 1 | 72608131784 | $15.51 | Shop at ECS Tuning | |||||
| 10 | Blind plug | 2 | 72601860157 | $6.60 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 12 | Spring washer | B5 | 4 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Reinforcement left | 1 | 72608131775 | $10.27 | Shop at ECS Tuning | |||||
| 13 | Reinforcement right | 1 | 72608131776 | $10.27 | Shop at ECS Tuning | |||||
| 14 | Self-locking hex nut | M6 | 6 | 64509123157 | $0.70 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 730i Flag holder?
- This technical diagram illustrates the Flag holder within the Restraint system and Accessories group for the 7 Series E38 730i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Flag holder (Part #72601878398).
- Which models use the hardware listed in this Flag holder?
- The hardware and components featured in the Flag holder are specific to the 7 Series E38 730i produced during 1996. These technical specifications ensure that parts like the Flag holder (72601878398) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flag holder assembly?
- Each item in the Flag holder corresponds to the numbered list below the illustration. For the 7 Series E38 730i, you can identify the Flag holder by locating its position on the schematic, which then links to the official BMW part number 72601878398 for the Restraint system and Accessories section.
