Accessories-set mud flap for BMW 5 Series E28 528e (1987)

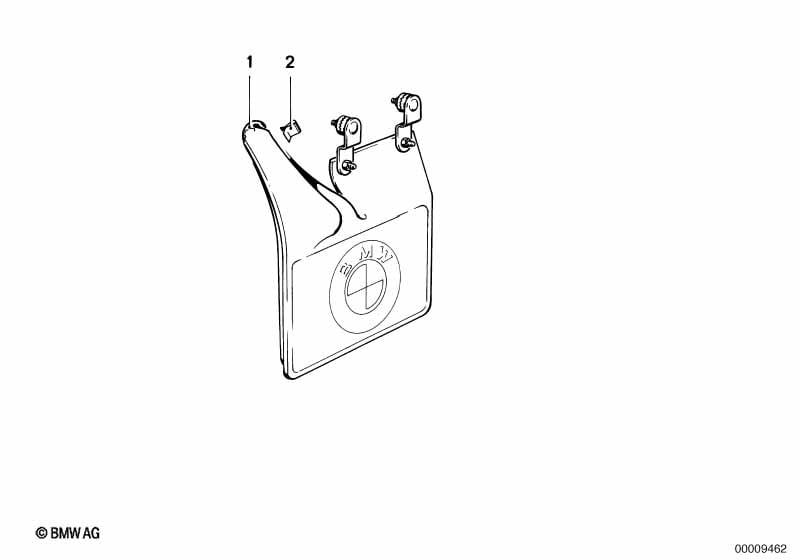

This Accessories-set mud flap technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set mud flaps, front | 1 | 72601902240 | $75.14 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Set mud flaps, rear | 1 | 72601902246 | $77.13 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fixing clamp, rear | 4 | 72601838045 | $1.78 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
