Safety belt adjuster for BMW 3 Series E36 M3 (1995)

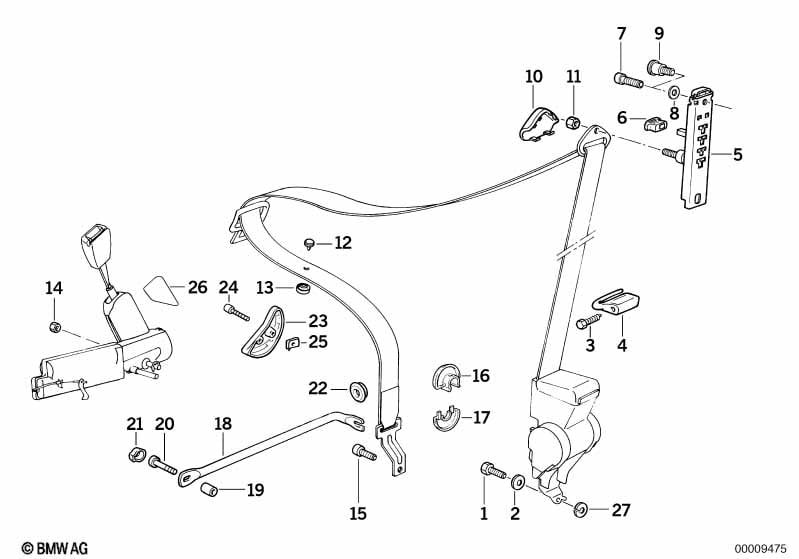

This Safety belt adjuster technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M10X25 8.8 | 2 | 07119908569 | Shop at ECS Tuning | |||||
| 01 | Hex bolt | 7/16X22 | 4 | 72111970620 | $0.92 | Shop at ECS Tuning | ||||
| 02 | Wave washer | 11,2 / 19 | 4 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,8X13-C-U1-Z | 2 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Bow | 2 | 72119117185 | $1.77 | Shop at ECS Tuning | |||||
| 05 | Safety belt adjuster | 2 | 72111977825 | $24.05 | ENDED | Shop at ECS Tuning | ||||
| 05 | Safety belt adjuster | TRW-REPA | 2 | 72111977826 | Shop at ECS Tuning | |||||
| 06 | Operating lever | 2 | 72118119910 | $0.32 | Shop at ECS Tuning | |||||
| 07 | Torx bolt | 7/16 UNF-2A | 4 | 07149153503 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 10 | Covering cap | 2 | 72118119186 | $0.88 | Shop at ECS Tuning | |||||
| 11 | Nut | 7/16 | 2 | 72111977925 | $1.30 | Shop at ECS Tuning | ||||
| 14 | Nut | M10 | 2 | 72118132916 | $0.60 | Shop at ECS Tuning | ||||
| 15 | Torx bolt | ISA M10X18 | 2 | 11119148303 | $0.80 | Shop at ECS Tuning | ||||
| 26 | Foil left | 1 | 72118174769 | $1.32 | ENDED | Shop at ECS Tuning | ||||
| 26 | Foil right | 1 | 72118174770 | $1.58 | ENDED | Shop at ECS Tuning | ||||
| 27 | Circlip | 2 | 72111969175 | $0.53 | Shop at ECS Tuning |
