Safety belt rear for BMW 3 Series E36 318is
This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Upper belt rear | SCHWARZ | 2 | 09/1990 | 72111977401 | $98.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Upper belt rear | 2 | 72111977402 | +core | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||

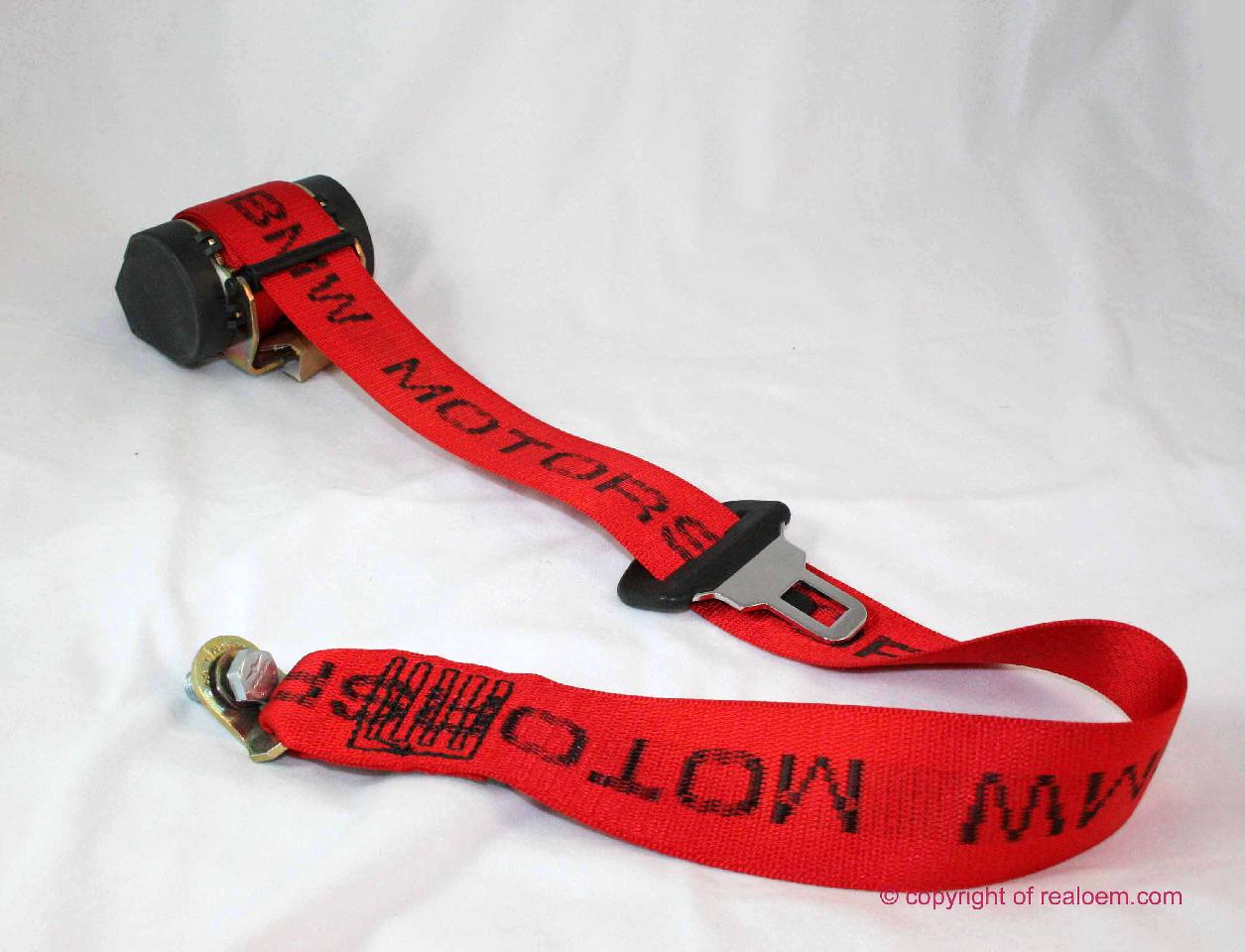

| 01 | Left upper rear belt "BMW motorsport" | ROT | 1 | 72112257467 | $178.78 | +core | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Right upper rear belt "BMW motorsport" | ROT | 1 | 72112257468 | $178.78 | +core | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Rear upper belt with child protection | 2 | 72118208815 | $154.25 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Lower belt rear left | 1 | 72111977411 | +core | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Lower belt rear right | 1 | 72111977412 | +core | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 02 | Lower belt rear left | 1 | 72118135347 | $31.02 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Lower belt rear right | 1 | 72118135348 | $31.02 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lap belt rear left | SCHWARZ | 1 | 72111977413 | $45.05 | ENDED | Shop at ECS Tuning | |||
| 03 | Lap belt rear left | 1 | 72111977415 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Lap belt rear right | SCHWARZ | 1 | 72111977414 | $45.05 | ENDED | Shop at ECS Tuning | |||
| 04 | Lap belt rear right | 1 | 72111977416 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 05 | Gasket | 2 | 51478130023 | $3.50 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
