Front safety belt mounting parts for BMW 3 Series E36 318i

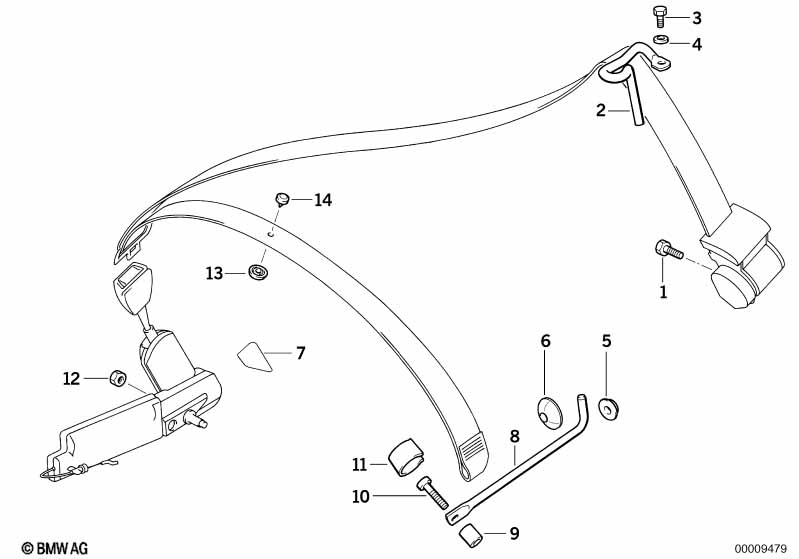

This Front safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | 7/16X22 | 2 | 72111970620 | $0.92 | Shop at ECS Tuning | ||||
| 02 | Bar left | 1 | 72118119121 | $19.87 | Shop at ECS Tuning | |||||
| 02 | Bar right | 1 | 72118119122 | $19.87 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Grommet | 2 | 72118163314 | $0.75 | Shop at ECS Tuning | |||||
| 06 | Covering cap | 2 | 72118173746 | $1.17 | Shop at ECS Tuning | |||||
| 07 | Foil left | 1 | 72118174769 | $1.32 | ENDED | Shop at ECS Tuning | ||||
| 07 | Foil right | 1 | 72118174770 | $1.58 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bar left | 1 | 72118132645 | $7.57 | Shop at ECS Tuning | |||||
| 08 | Bar right | 1 | 72118132646 | $7.72 | Shop at ECS Tuning | |||||
| 09 | Bush | 2 | 72118171134 | $2.68 | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | ISA M10X41 | 2 | 72118171254 | $0.83 | ENDED | Shop at ECS Tuning | |||
| 11 | Cap | 2 | 72112451569 | Shop at ECS Tuning | ||||||
| 12 | Nut | M10 | 2 | 72118132916 | $0.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
