Rear safety belt mounting parts for BMW 3 Series E36 320i (1996)

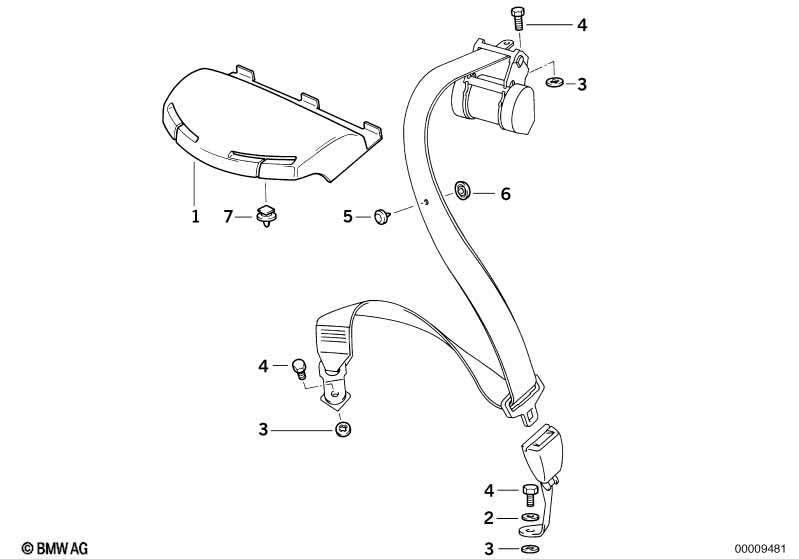

This Rear safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering center | SCHWARZ | 1 | 51718173204 | $24.54 | Shop at ECS Tuning | ||||
| 01 | Covering center | GRAU | 1 | 51718173205 | $24.54 | ENDED | Shop at ECS Tuning | |||
| 01 | Covering center | BEIGE | 1 | 51718173206 | $24.54 | Shop at ECS Tuning | ||||
| 02 | Washer | 2 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 03 | Circlip | 6 | 72111969175 | $0.53 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | 7/16X22 | 6 | 72111970620 | $0.92 | Shop at ECS Tuning | ||||
| 07 | Clip | GRUN | 2 | 51418101204 | $0.55 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Rear safety belt mounting parts?
- This technical diagram illustrates the Rear safety belt mounting parts within the Restraint system and Accessories group for the 3 Series E36 320i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Covering center (Part #51718173204).
- Which models use the hardware listed in this Rear safety belt mounting parts?
- The hardware and components featured in the Rear safety belt mounting parts are specific to the 3 Series E36 320i produced during 1996. These technical specifications ensure that parts like the Covering center (51718173204) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear safety belt mounting parts assembly?
- Each item in the Rear safety belt mounting parts corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Covering center by locating its position on the schematic, which then links to the official BMW part number 51718173204 for the Restraint system and Accessories section.
