Safety belt rear for BMW 3 Series E36 318ti (1999)

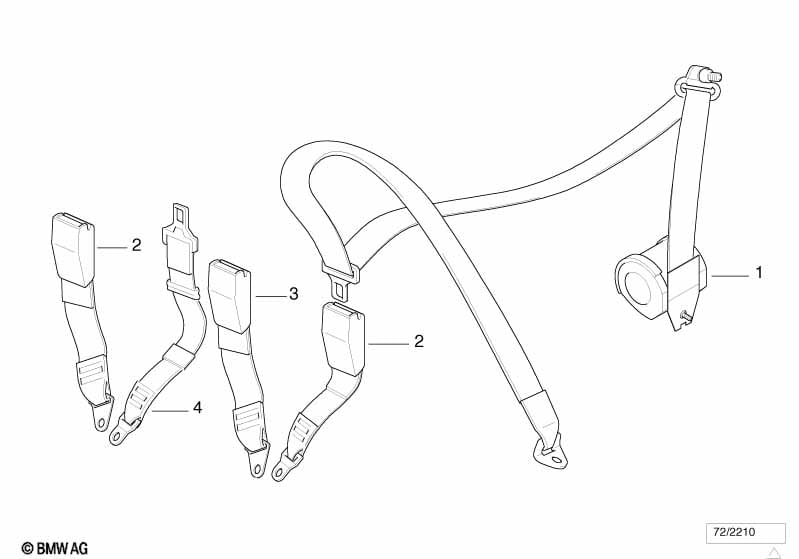

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Upper belt rear left w. child protection | SCHWARZ | 1 | 72118226631 | $107.10 | +core | Shop at ECS Tuning | |||
| 01 | Upper belt rear left w. child protection | SCHWARZ | 1 | 72118208871 | ENDED | Shop at ECS Tuning | ||||
| 01 | Upper belt rear right w.child protection | 1 | 72118226632 | $107.10 | +core | Shop at ECS Tuning | ||||
| 02 | Lower strap, rear | SCHWARZ | 2 | 72118146796 | $31.02 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lap belt rear left | SCHWARZ | 1 | 72111977413 | $45.05 | ENDED | Shop at ECS Tuning | |||
| 03 | Lap belt rear left | 1 | 72111977415 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Lap belt rear right | SCHWARZ | 1 | 72111977414 | $45.05 | ENDED | Shop at ECS Tuning | |||
| 04 | Lap belt rear right | 1 | 72111977416 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Safety belt rear?
- This technical diagram illustrates the Safety belt rear within the Restraint system and Accessories group for the 3 Series E36 318ti produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Upper belt rear left w. child protection (Part #72118226631).
- Which models use the hardware listed in this Safety belt rear?
- The hardware and components featured in the Safety belt rear are specific to the 3 Series E36 318ti produced during 1999. These technical specifications ensure that parts like the Upper belt rear left w. child protection (72118226631) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt rear assembly?
- Each item in the Safety belt rear corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Upper belt rear left w. child protection by locating its position on the schematic, which then links to the official BMW part number 72118226631 for the Restraint system and Accessories section.
