Safety belt rear for BMW 7 Series E38 730i (1996)

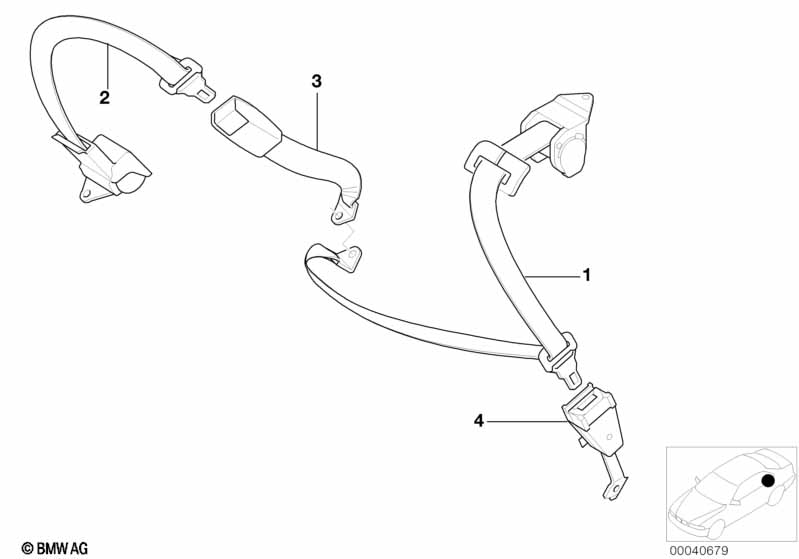

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Upper belt rear | LAVENDELGRAU | 2 | 72118174355 | $109.09 | ENDED | Shop at ECS Tuning | |||
| 01 | Upper belt rear | PASTELGRUEN | 2 | 72118174356 | $109.09 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | REAR center UPPER BELT | LAVENDELGRAU | 1 | 72118208849 | $134.44 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Upper belt rear | SCHWARZ | 2 | 72118174352 | $109.09 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear | GRAU | 2 | 72118174353 | $109.09 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear | SANDBEIGE | 2 | 72118174354 | $109.09 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | REAR center UPPER BELT | SCHWARZ | 1 | 72118208843 | $134.44 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | REAR center UPPER BELT | GRAU | 1 | 72118208845 | $134.44 | +core | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | REAR center UPPER BELT | SANDBEIGE | 1 | 72118208847 | $134.44 | ENDED, +core | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear | PEARLBEIGE | 2 | 72118261632 | ENDED, +core | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Safety belt | SCHWARZ | 1 | 72118174394 | $69.24 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Safety belt | SCHWARZ | 1 | 72118174360 | $49.98 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| FOR VEHICLES WITH AND WITHOUT HEADREST ELECT.ADJUST.REAR |
||||||||||
| 04 | Lower strap, rear | 2 | 72118162767 | $72.56 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
