Rear safety belt mounting parts for BMW 5 Series E39 528i (2000)

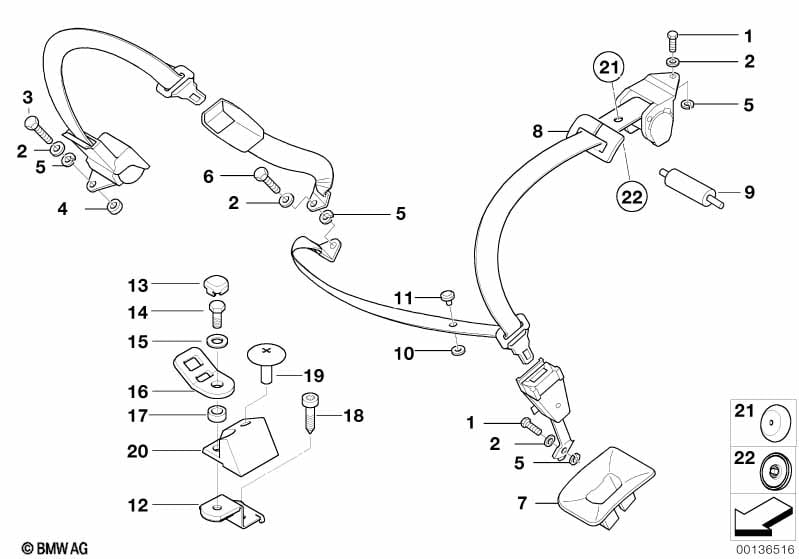

This Rear safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | 7/16X22 | 3 | 72111970620 | $0.92 | Shop at ECS Tuning | ||||
| 02 | Washer | 3 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 05 | Circlip | 3 | 72111969175 | $0.53 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | 7/16X25 | 3 | 72118119229 | $1.20 | Shop at ECS Tuning | ||||
| 08 | Cover, belt outlet | SCHWARZ | 3 | 51468208256 | $4.29 | Shop at ECS Tuning | ||||
| 08 | Cover, belt outlet | GRAU | 3 | 51468208257 | $4.29 | Shop at ECS Tuning | ||||
| 08 | Cover, belt outlet | MARINE BLAU | 3 | 51468208258 | $4.69 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover, belt outlet | SANDBEIGE | 3 | 51468208259 | $4.29 | Shop at ECS Tuning | ||||
| 08 | Cover, belt outlet | ENGLISH GRUEN | 3 | 51468208260 | $4.69 | Shop at ECS Tuning | ||||
| 12 | Bracket, child seat fastening | 3 | 72118206336 | $17.77 | Shop at ECS Tuning | |||||
| 13 | Covering cap | SCHWARZ | 1 | 72118187598 | $0.73 | Shop at ECS Tuning | ||||
| 14 | Screw | 5/16X35 | 1 | 72111922499 | $1.20 | Shop at ECS Tuning | ||||
| 15 | Adjusting washer | 9X15X1,2-ZN | 4 | 07119906257 | Shop at ECS Tuning | |||||
| 16 | Support, child seat | SCHWARZ | 1 | 72118187599 | $5.56 | ENDED | Shop at ECS Tuning | |||
| 18 | Torx bolt | 7/16 UNF-2A | 3 | 07149153503 | $1.05 | Shop at ECS Tuning | ||||
| 19 | Covering cap | SCHWARZ | 2 | 72118199243 | $1.20 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
