Safety belt front 2-door for BMW 3 Series E30 318i (1991)

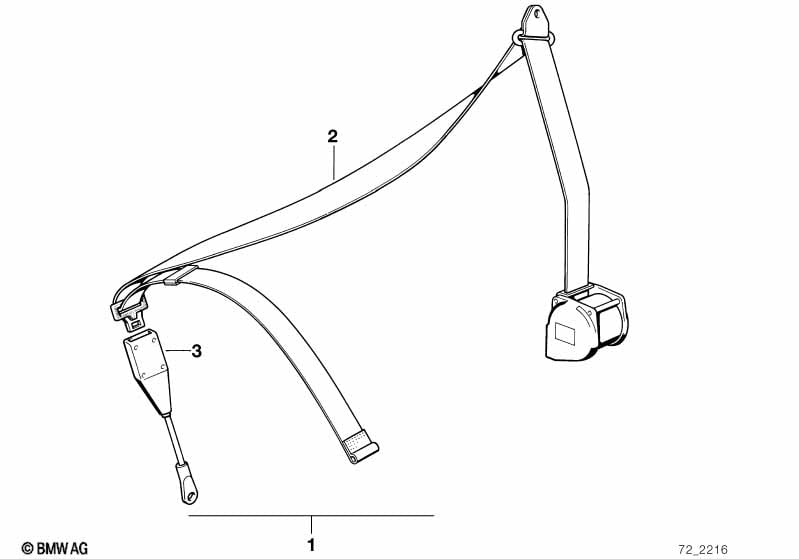

This Safety belt front 2-door technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Upper belt front | 2 | 09/1986 | 72111941396 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO EDITION | ||||||||||
| 02 | Upper belt front | SCHIEFER | 2 | 72118121202 | ENDED | Shop at ECS Tuning | ||||
| 02 | Upper belt front | INDIGO | 2 | 72118121203 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lower strap, front | 2 | 09/1986 | 72111941407 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Safety belt front 2-door?
- This technical diagram illustrates the Safety belt front 2-door within the Restraint system and Accessories group for the 3 Series E30 318i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Upper belt front (Part #72111941396).
- Which models use the hardware listed in this Safety belt front 2-door?
- The hardware and components featured in the Safety belt front 2-door are specific to the 3 Series E30 318i produced during 1991. These technical specifications ensure that parts like the Upper belt front (72111941396) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt front 2-door assembly?
- Each item in the Safety belt front 2-door corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Upper belt front by locating its position on the schematic, which then links to the official BMW part number 72111941396 for the Restraint system and Accessories section.
