Weapon box for BMW 7 Series E38 728i (2001)

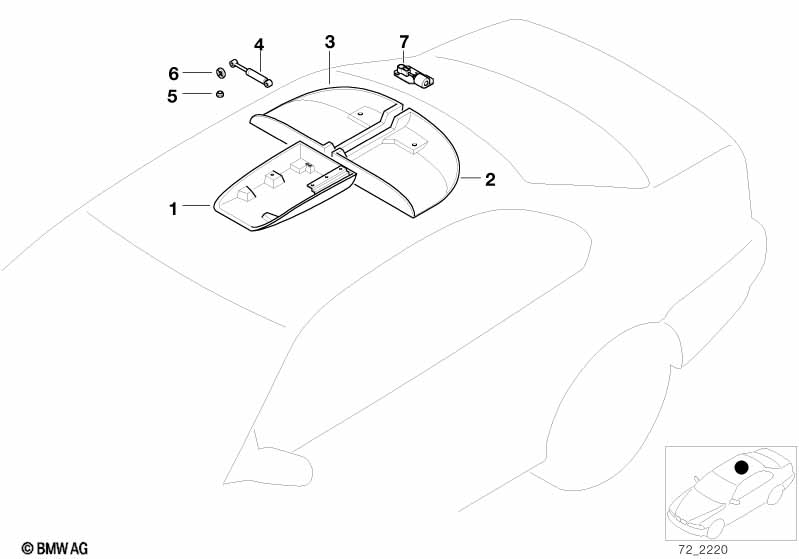

This Weapon box technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front weapon box | HELLGRAU | 1 | 72168201154 | ENDED | Shop at ECS Tuning | ||||
| 01 | Front weapon box | SANDBEIGE | 1 | 72168201155 | ENDED | Shop at ECS Tuning | ||||
| 01 | Front weapon box | PEARLBEIGE | 1 | 72168254695 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Left rear weapon box | HELLGRAU | 1 | 72168201157 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left rear weapon box | SANDBEIGE | 1 | 72168201159 | ENDED | Shop at ECS Tuning | ||||
| 02 | Left rear weapon box | PEARLBEIGE | 1 | 72168254919 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Right rear weapon box | HELLGRAU | 1 | 72168201158 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right rear weapon box | SANDBEIGE | 1 | 72168201160 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right rear weapon box | PEARLBEIGE | 1 | 72168254920 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Absorber | 3 | 72168181050 | ENDED, +core | Shop at ECS Tuning | |||||
| 05 | Hex nut with plate | AM6-8-ZNNIV SI | X | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Circlip | 4,0 | 6 | 07119932822 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Weapon safety device | 3 | 72168181046 | ENDED | Shop at ECS Tuning |
