Fire extinguisher for BMW 5 Series E28 535i (1981)

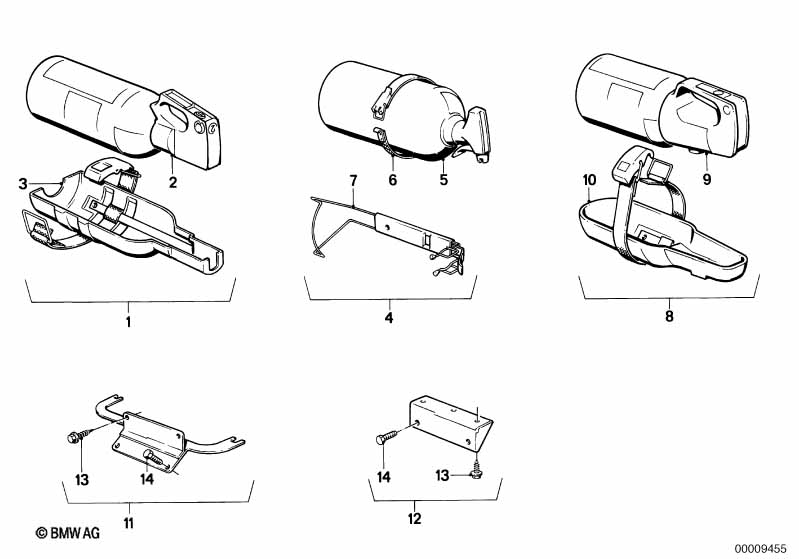

This Fire extinguisher technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set fire-extinguisher powder | 1 KG | 1 | 72600000335 | +core, NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| -- | Mounting parts set f fire extinguisher | RECARO | 1 | 72601913970 | ENDED | Shop at ECS Tuning | ||||
| 01 | Mounting parts set f fire extinguisher | 1 | 72601906501 | $15.33 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO BMW SPORTS SEAT | ||||||||||
| 02 | Fire-extinguisher powder | 1KG | 1 | 72601921386 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 72601921387 | $25.65 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Mounting parts set f fire extinguisher | 1 | 72601906501 | $15.33 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO BMW SPORTS SEAT | ||||||||||
| For vehicles with National version Belgium |
L811A=Yes |
|||||||||
| 04 | Installing set fire-extinguisher powder | 2KG | 1 | 72601880027 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| -- | Mounting parts set f fire extinguisher | RECARO | 1 | 72601913970 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Great Britain |
L812A=Yes |
|||||||||
| 04 | Installing set fire-extinguisher powder | 2KG | 1 | 72601880023 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| -- | Mounting parts set f fire extinguisher | RECARO | 1 | 72601913970 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Netherlands version |
=Yes |
|||||||||
| 04 | Installing set fire-extinguisher powder | 2KG | 1 | 72601880025 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| -- | Mounting parts set f fire extinguisher | RECARO | 1 | 72601913970 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fire-extinguisher powder | 2KG | 1 | 72601880022 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Belgium |
L811A=Yes |
|||||||||
| 05 | Fire-extinguisher powder | 2KG | 1 | 72601880028 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Great Britain |
L812A=Yes |
|||||||||
| 05 | Fire-extinguisher powder | 2KG | 1 | 72601880024 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Netherlands version |
=Yes |
|||||||||
| 05 | Fire-extinguisher powder | 2KG | 1 | 72601880026 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| 06 | Holding strap | 1 | 72601874051 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 72601880021 | $28.18 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| 08 | Mounting parts set f fire extinguisher | 1 | 72601906501 | $15.33 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO BMW SPORTS SEAT | ||||||||||
| 10 | Holder | 1 | 72601900752 | ENDED, +core | Shop at ECS Tuning | |||||
| 11 | Mounting parts set | 1 | 72601887447 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with BMW sports seat |
=Yes |
|||||||||
| 12 | Mounting parts set f fire extinguisher | 1 | 72601906501 | $15.33 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex head screw | ST6,3X16-C-Z1 | 2 | 07119916965 | $0.27 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
