Armor plate mounting parts for BMW 7 Series E38 750iLS (1998)

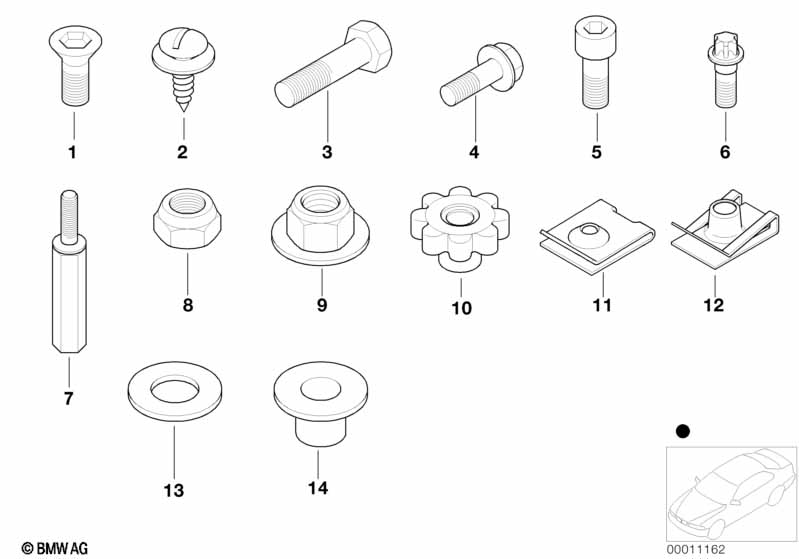

This Armor plate mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Countersunk head screw | M8X20 | X | 07119900868 | $0.71 | Shop at ECS Tuning | ||||
| 01 | Countersunk head screw | M6X16-8.8-ZNS3 | X | 07119904304 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,2X22-Z1 | X | 07119907817 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X55-8.8 | X | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X12-U2-8.8 | X | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X16-U1-8.8 | X | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X30-Z3 | X | 07119913980 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Fillister-head screw | M8X20 | X | 07119919759 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Fillister-head screw | M4X27 | X | 54318183750 | $4.88 | Shop at ECS Tuning | ||||
| 06 | Torx-countersunk head screw | ISA M6X12 | X | 51211950266 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Spacer bolt | M8 | X | 16111183190 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8-8-ZNS3 | X | 07/2001 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 08 | Hex nut | M8-8-ZNNIV SI | X | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | AM6-8-ZNNIV SI | X | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | AM6-8-ZNNIV SI | X | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M6 | X | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Knurled head nut | X | 72171958884 | ENDED | Shop at ECS Tuning | |||||
| 11 | Body nut | ST 4,8-4-ZNS3 | X | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 12 | C-clip nut | M6-ZNS3 | X | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 13 | Washer | 9X4,3X0,8-200HV | X | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 13 | Washer | 8,4X16X1,6-ZNNV | X | 07119907030 | Shop at ECS Tuning | |||||
| 14 | Bush | X | 64538368101 | $1.56 | Shop at ECS Tuning |
