Safety belt rear for BMW 5 Series E39 540i (2003)

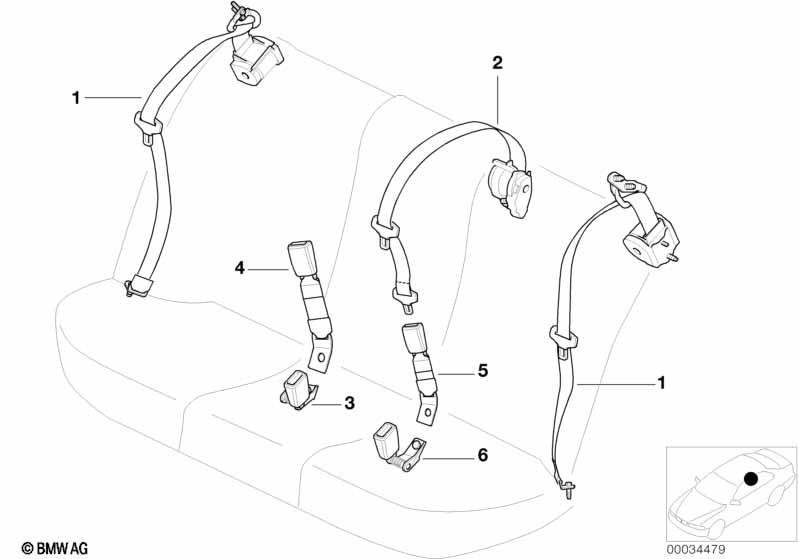

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. Cover, belt outlet see main group 52 THROUGH-LOADING FACILITY/SINGLE PARTS |
|||||||||
| 01 | Rear upper belt without child protection | SCHWARZ | 3 | 72118198478 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Rear upper belt without child protection | GRAU | 3 | 72118198479 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 01 | Rear upper belt without child protection | SCHWARZ | 2 | 72118198478 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Rear upper belt without child protection | GRAU | 2 | 72118198479 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Rear upper belt without child protection | SANDBEIGE | 2 | 72118198480 | $163.52 | ENDED | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | Rear upper belt without child protection | SANDBEIGE | 3 | 72118198480 | $163.52 | ENDED | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 02 | Center upper belt without child protect | SCHWARZ | 1 | 72118198494 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Center upper belt without child protect | SANDBEIGE | 1 | 72118198496 | $108.25 | ENDED, +core | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system and National version China |
S465A=Yes L8AAA=No |
|||||||||
| 02 | Center upper belt without child protect | GRAU | 1 | 72118198495 | $155.65 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lower belt rear right | 1 | 72118176516 | $50.81 | ENDED | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 03 | Lower belt rear right | 1 | 72118176520 | $50.81 | ENDED | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Lower belt rear center | SCHWARZ | 1 | 72118209836 | $35.40 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 05 | Lower belt rear center | SCHWARZ | 1 | 72118198469 | $35.40 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 06 | Lower belt rear left | 1 | 72118176515 | $50.81 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 06 | Lower belt rear left | 1 | 72118176519 | $50.81 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
