Safety belt rear for BMW 3 Series E46 323i (2000)

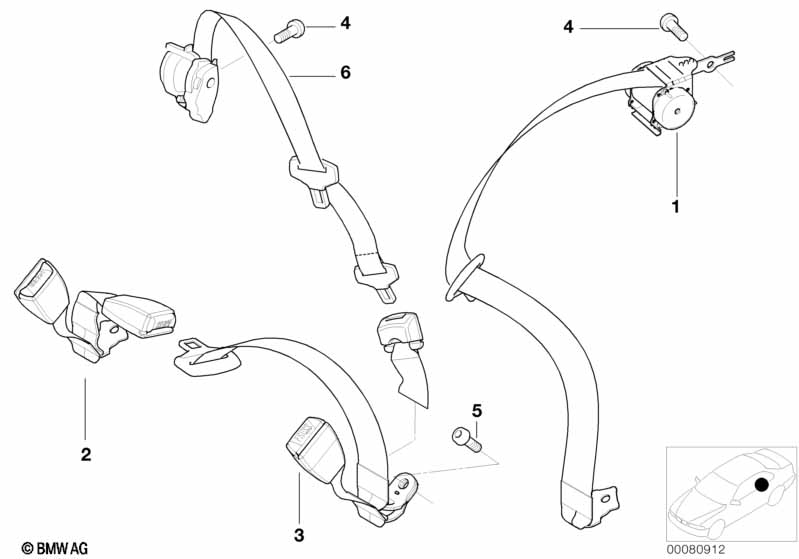

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Upper belt rear | 2 | 72118202591 | $97.48 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Lower belt rear right | 1 | 72118233292 | $66.21 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lower belt rear left | 1 | 72118233291 | $57.94 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with 3-point belt and headrest, center rear |
S495A=Yes |
|||||||||
| 03 | Lower belt rear left | 1 | 72118242767 | $66.21 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 04 | Fillister head screw | M10X26 | 1 | 07146962565 | $0.73 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M12 X 26 | 1 | 72118245362 | $0.92 | Shop at ECS Tuning | ||||
| For vehicles with 3-point belt and headrest, center rear |
S495A=Yes |
|||||||||
| 06 | REAR center UPPER BELT | 1 | 72118201020 | ENDED | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
