Safety belt adjuster for BMW 3 Series E46 325Ci (2003)

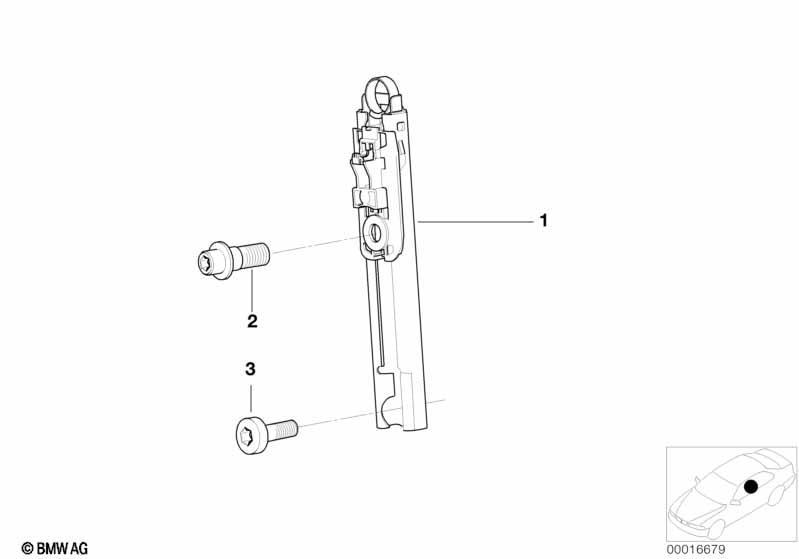

This Safety belt adjuster technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt adjuster | 2 | 72118207957 | $24.05 | Shop at ECS Tuning | |||||
| 02 | Fillister-head screw | ISA M8X16 | 2 | 72118215818 | $1.23 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | 7/16 UNF-2A | 2 | 07149153503 | $1.05 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325Ci Safety belt adjuster?
- This technical diagram illustrates the Safety belt adjuster within the Restraint system and Accessories group for the 3 Series E46 325Ci produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Safety belt adjuster (Part #72118207957).
- Which models use the hardware listed in this Safety belt adjuster?
- The hardware and components featured in the Safety belt adjuster are specific to the 3 Series E46 325Ci produced during 2003. These technical specifications ensure that parts like the Safety belt adjuster (72118207957) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt adjuster assembly?
- Each item in the Safety belt adjuster corresponds to the numbered list below the illustration. For the 3 Series E46 325Ci, you can identify the Safety belt adjuster by locating its position on the schematic, which then links to the official BMW part number 72118207957 for the Restraint system and Accessories section.
