Ski bag for BMW 3 Series E46 323Ci (2000)

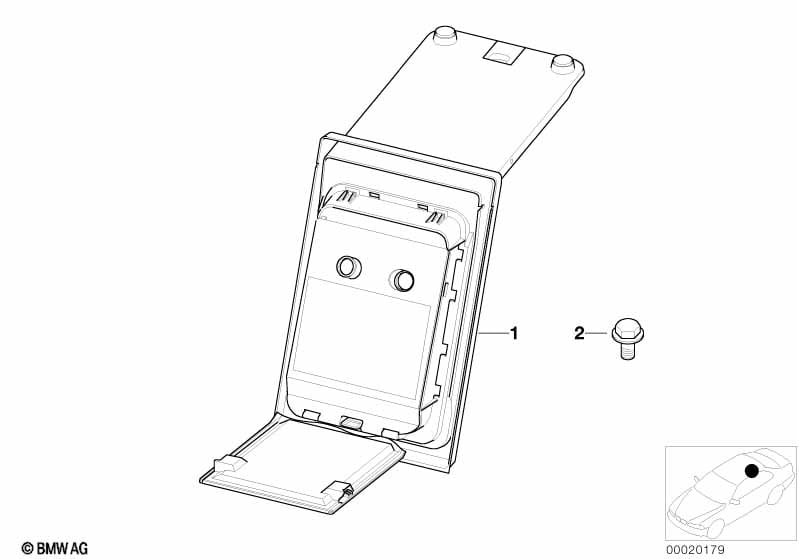

This Ski bag technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | SKI BAG LOCKING MECHANISM REFER TO MAIN GROUP 52 THROUGH-LOADING FACILITY/SINGLE PARTS |
|||||||||
| 01 | Ski bag cassette | 1 | 72608179197 | $392.20 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X10-Z1 | 1 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323Ci Ski bag?
- This technical diagram illustrates the Ski bag within the Restraint system and Accessories group for the 3 Series E46 323Ci produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Ski bag cassette (Part #72608179197).
- Which models use the hardware listed in this Ski bag?
- The hardware and components featured in the Ski bag are specific to the 3 Series E46 323Ci produced during 2000. These technical specifications ensure that parts like the Ski bag cassette (72608179197) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ski bag assembly?
- Each item in the Ski bag corresponds to the numbered list below the illustration. For the 3 Series E46 323Ci, you can identify the Ski bag cassette by locating its position on the schematic, which then links to the official BMW part number 72608179197 for the Restraint system and Accessories section.
