Safety belt front for BMW 1502-2002tii 1502 (1977)

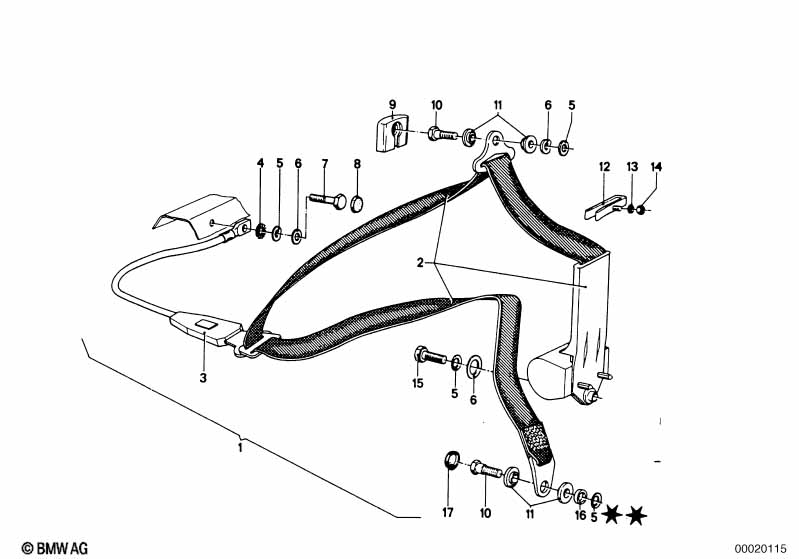

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Special series, Luxury | ||||||||||
| 01 | Safety belt front left | AUTOFLUG | 1 | 72111844963 | $236.34 | Shop at ECS Tuning | ||||
| 01 | Safety belt front right | AUTOFLUG | 1 | 72111844964 | $236.34 | Shop at ECS Tuning | ||||
| 04 | Washer | A12,5 | 2 | 07119936670 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wave washer | 11,2 / 19 | 4 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 06 | Washer | 4 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 07 | Collar screw | 7/16"X22 | 2 | 72111822963 | $5.93 | ENDED | Shop at ECS Tuning | |||
| 08 | Covering cap | ANTHRAZIT | 2 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 09 | Covering cap | AUTOFLUG | 2 | 72111815731 | ENDED | Shop at ECS Tuning | ||||
| 10 | Screw | 2 | 72111813912 | ENDED | Shop at ECS Tuning | |||||
| 11 | Stop disk | 8 | 72111813919 | $6.22 | Shop at ECS Tuning | |||||
| 12 | Seat belt guide | 2 | 72111815734 | $7.68 | ENDED | Shop at ECS Tuning | ||||
| 13 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | 7/16X30 | 2 | 72118157617 | $0.92 | Shop at ECS Tuning | ||||
| 16 | Spacer bush | 2 | 72111813915 | $0.72 | Shop at ECS Tuning | |||||
| 17 | Covering cap | AUTOFLUG | 2 | 72111815732 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1502 Safety belt front?
- This technical diagram illustrates the Safety belt front within the Restraint system and Accessories group for the 1502-2002tii 1502 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Safety belt front left (Part #72111844963).
- Which models use the hardware listed in this Safety belt front?
- The hardware and components featured in the Safety belt front are specific to the 1502-2002tii 1502 produced during 1977. These technical specifications ensure that parts like the Safety belt front left (72111844963) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt front assembly?
- Each item in the Safety belt front corresponds to the numbered list below the illustration. For the 1502-2002tii 1502, you can identify the Safety belt front left by locating its position on the schematic, which then links to the official BMW part number 72111844963 for the Restraint system and Accessories section.
