Safety belt rear for BMW 1502-2002tii 2002 (1973)

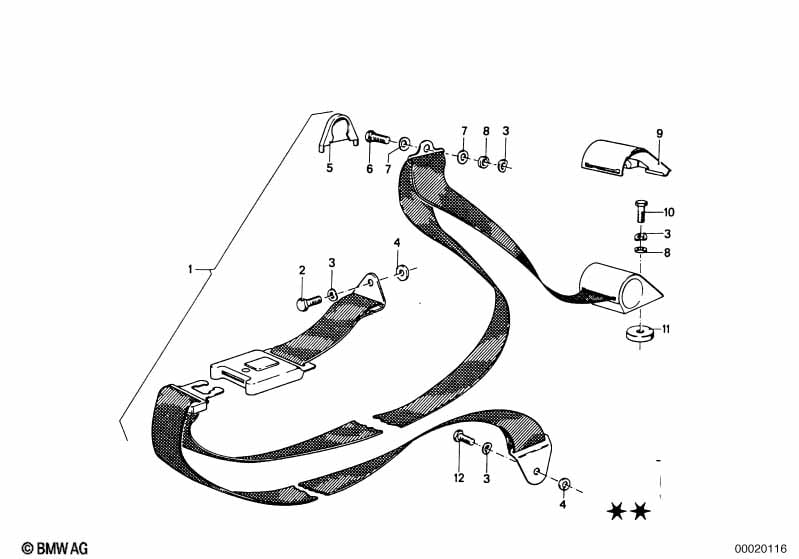

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt | 2 | 72119055229 | $257.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Screw | 2 | 72111805042 | ENDED | Shop at ECS Tuning | |||||
| 03 | Wave washer | 11,2 / 19 | 8 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 04 | Washer | 4 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 07 | Stop disk | 4 | 72111845046 | $0.22 | Shop at ECS Tuning | |||||
| 08 | Spacer bush | GRAENGES | 4 | 72111815729 | $0.57 | Shop at ECS Tuning | ||||
| 09 | Covering cap | 2 | 72111836650 | ENDED | Shop at ECS Tuning | |||||
| 10 | Screw | 7/16"X35 | 2 | 72111814958 | $1.03 | ENDED | Shop at ECS Tuning | |||
| 11 | Mounting plate | 2 | 72111841061 | ENDED | Shop at ECS Tuning | |||||
| 12 | Collar screw | 7/16"X22 | 2 | 72111822963 | $5.93 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
