Safety belt warning for BMW 1502-2002tii 2002 (1976)

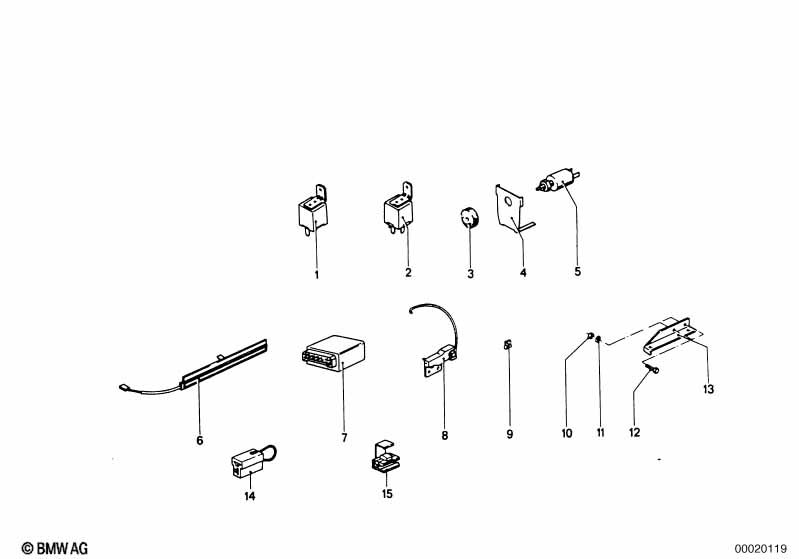

This Safety belt warning technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Buzzer | 1 | 61331352811 | $21.27 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 11 | Tooth washer | A4,3 | 4 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M4X10-8.8-ZNNIV | 4 | 07119906112 | Shop at ECS Tuning | |||||
| 14 | Plug termial | 2 | 61114140969 | ENDED | Shop at ECS Tuning | |||||
| 15 | Connection piece | 2 | 61314140972 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Safety belt warning?
- This technical diagram illustrates the Safety belt warning within the Restraint system and Accessories group for the 1502-2002tii 2002 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Buzzer (Part #61331352811).
- Which models use the hardware listed in this Safety belt warning?
- The hardware and components featured in the Safety belt warning are specific to the 1502-2002tii 2002 produced during 1976. These technical specifications ensure that parts like the Buzzer (61331352811) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt warning assembly?
- Each item in the Safety belt warning corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Buzzer by locating its position on the schematic, which then links to the official BMW part number 61331352811 for the Restraint system and Accessories section.
