Safety belt front for BMW 2500-3.3Li 3.0Si (1976)

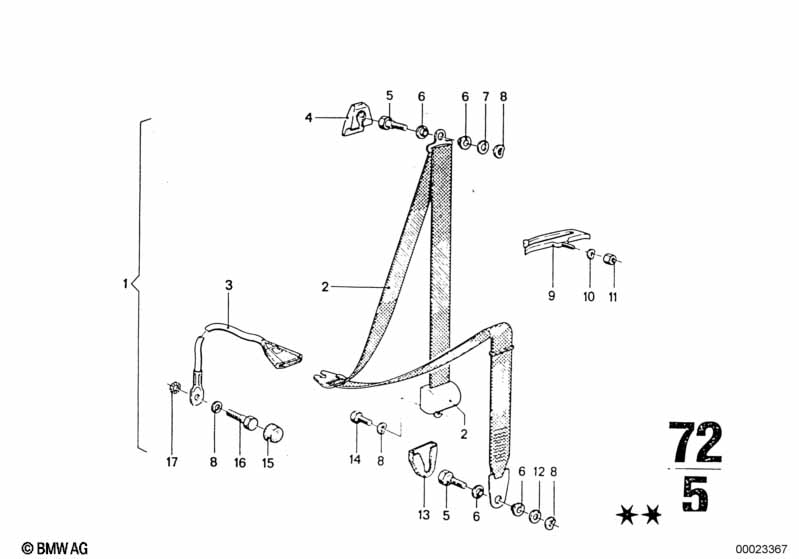

This Safety belt front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt front | AUTOFLUG | 2 | 08/1973 | 72111844952 | $163.64 | ENDED | Shop at ECS Tuning | ||
| 04 | Covering cap | AUTOFLUG | 2 | 72111815731 | ENDED | Shop at ECS Tuning | ||||
| 05 | Screw | AUTOFLUG | 4 | 72111819812 | ENDED | Shop at ECS Tuning | ||||
| 06 | Stop disk | 8 | 72111813919 | $6.22 | Shop at ECS Tuning | |||||
| 07 | Washer | 2 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 08 | Wave washer | 11,2 / 19 | 6 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 09 | Seat belt guide | 2 | 72111815734 | $7.68 | ENDED | Shop at ECS Tuning | ||||
| 10 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 12 | Spacer bush | 4 | 72111813915 | $0.72 | Shop at ECS Tuning | |||||
| 13 | Covering cap | AUTOFLUG | 2 | 72111815732 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex bolt | 7/16X30 | 2 | 72118157617 | $0.92 | Shop at ECS Tuning | ||||
| 15 | Covering cap | ANTHRAZIT | 2 | 08/1968 | 02/1977 | 72111808464 | $0.63 | ENDED | Shop at ECS Tuning | |
| 16 | Collar screw | 7/16"X22 | 4 | 08/1968 | 02/1977 | 72111822963 | $5.93 | ENDED | Shop at ECS Tuning | |
| 17 | Washer | A12,5 | 2 | 07119936670 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
