Safety belt rear for BMW 2500-3.3Li 2800 (1970)

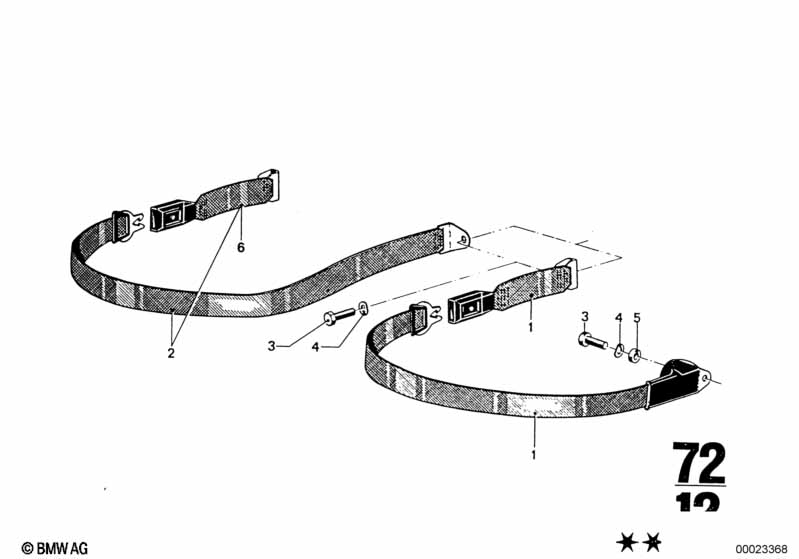

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt rear | REPA | 2 | 72111832302 | ENDED | Shop at ECS Tuning | ||||
| 01 | Safety belt rear | REPA | 2 | 72111832422 | ENDED | Shop at ECS Tuning | ||||
| 02 | Safety belt rear center | 1 | 72111832419 | ENDED | Shop at ECS Tuning | |||||
| 02 | Safety belt, rear center, USA | 1 | 72111840317 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex bolt | 7/16X30 | 4 | 72118157617 | $0.92 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 11,2 / 19 | 2 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 05 | Washer | 4 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
| 06 | Lower strap, rear | REPA | 1 | 72111849656 | ENDED | Shop at ECS Tuning | ||||
| 06 | Lower strap, rear | AUTOFLUG | 1 | 72111868996 | $32.37 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
