Electr. parts for US safety belts for BMW 2500-3.3Li 3.0SBav (1973)

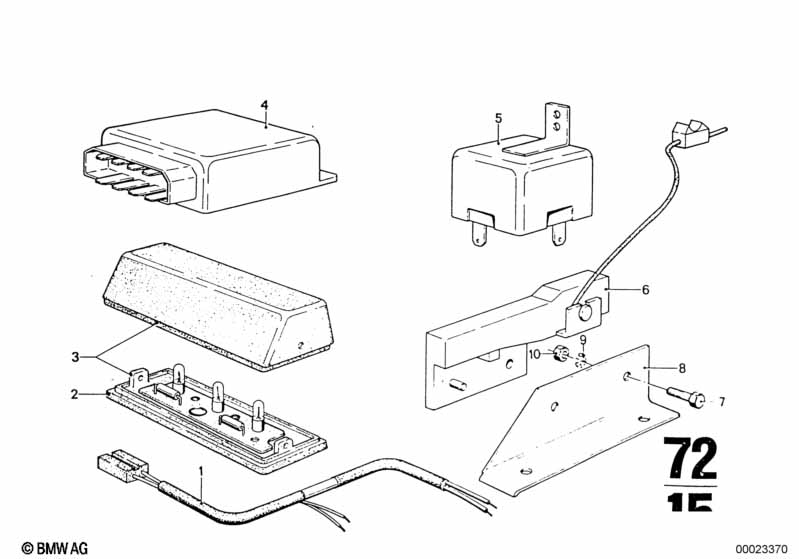

This Electr. parts for US safety belts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring safety belt warning | 1 | 61121357922 | ENDED | Shop at ECS Tuning | |||||
| 02 | Base control light | 1 | 63311359204 | ENDED | Shop at ECS Tuning | |||||
| 03 | Control light safety belt | 1 | 07/1971 | 07/1974 | 63311357358 | ENDED | Shop at ECS Tuning | |||
| 05 | Buzzer | 1 | 07/1971 | 07/1974 | 61331352811 | $21.27 | Shop at ECS Tuning | |||
| 06 | Switch safety belt warning | 1 | 61311357419 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M4X10-8.8-ZNNIV | 4 | 07119906112 | Shop at ECS Tuning | |||||
| 08 | Support | 4 | 52101833050 | ENDED | Shop at ECS Tuning | |||||
| 09 | Tooth washer | A4,3 | 4 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
