Lower strap, front for BMW 3 Series E36 325td (1991)

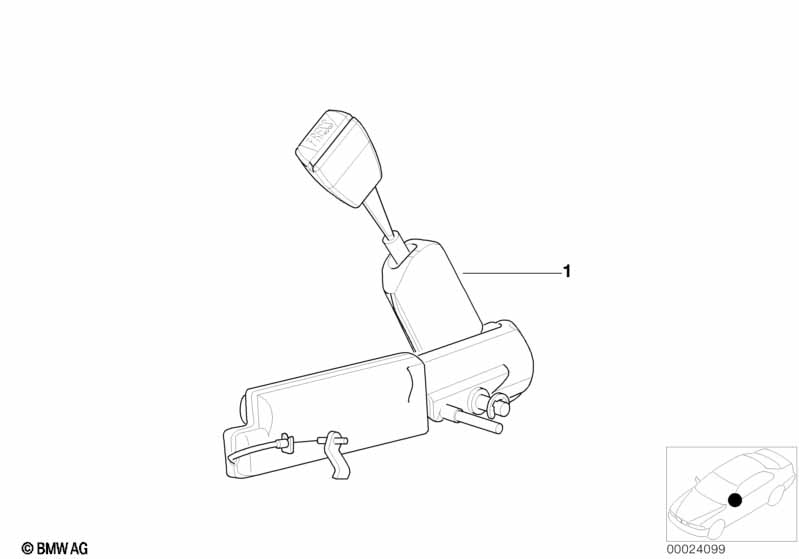

This Lower strap, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Lower belt with left belt tensioner | 1 | 09/1993 | 72118164935 | $144.44 | SI 720191385 | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Lower belt with right belt tensioner | 1 | 03/1997 | 72118167712 | $188.25 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Electr. front seat adjustment |
S458A=Yes |
|||||||||
| 01 | Lower belt with right belt tensioner | 1 | 09/1993 | 72118164934 | $147.52 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Lower belt with left belt tensioner | 1 | 09/1993 | 72118164939 | $144.44 | ENDED, SI 720191385 | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
