Safety belt rear for BMW 5 Series E39 525d (2003)

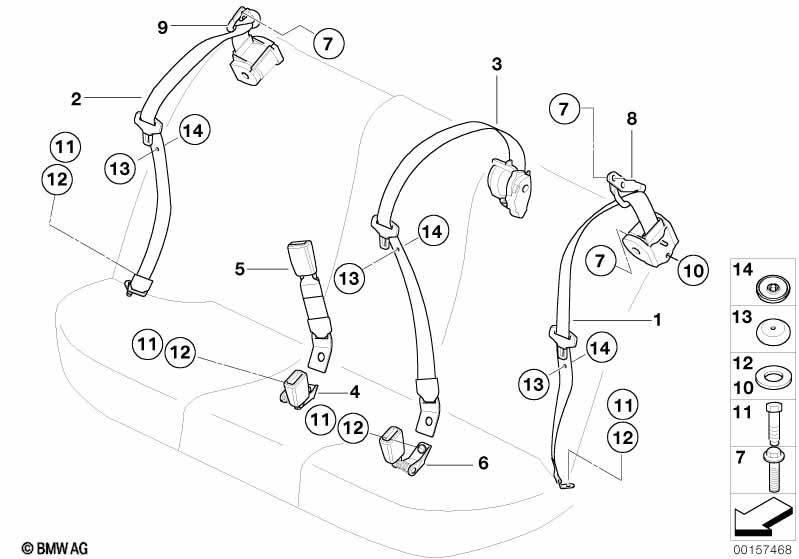

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. Cover, belt outlet see main group 52 THROUGH-LOADING FACILITY/SINGLE PARTS |
|||||||||
| 01 | Upper belt rear left | SCHWARZ | 1 | 72118193097 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear left | GRAU | 1 | 72118209941 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt rear left | SANDEBEIGE | 1 | 72118209943 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Upper belt rear right | SCHWARZ | 1 | 72118193098 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Upper belt rear right | SANDBEIGE | 1 | 72118209940 | ENDED | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Upper belt rear right | GRAU | 1 | 72118209950 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | REAR center UPPER BELT | SCHWARZ | 1 | 72118193099 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | REAR center UPPER BELT | GRAU | 1 | 72118209948 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | REAR center UPPER BELT | SANDBEIGE | 1 | 72118209951 | ENDED | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 03 | REAR center UPPER BELT | SANDBEIGE | 1 | 72110428298 | ENDED | Shop at ECS Tuning | ||||
| 04 | Lower belt rear right | 1 | 72118176520 | $50.81 | ENDED | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 05 | Lower belt rear center | 1 | 72118222821 | $47.40 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 06 | Lower belt rear left | 1 | 72118176519 | $50.81 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 07 | Oval-head machine screw w. scrape point | M11X32 | 6 | 07149148308 | $0.92 | Shop at ECS Tuning | ||||
| 08 | Bar left | 1 | 72118193095 | $9.68 | Shop at ECS Tuning | |||||
| 09 | Bar right | 1 | 72118193096 | $9.68 | Shop at ECS Tuning | |||||
| 10 | Wave washer | 11,2 / 19 | 2 | 72111808672 | $0.17 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | 7/16" 30MM | 4 | 72111850076 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 12 | Washer | 4 | 72111808673 | $0.37 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
