Fire extinguishing system tubing for BMW 7 Series E38 750iLS (2001)

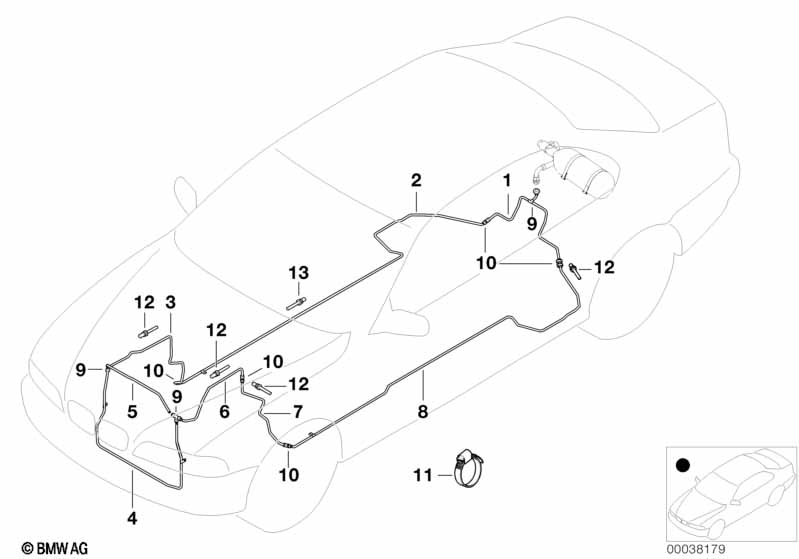

This Fire extinguishing system tubing technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fire exting.tubing, rear axle | 1 | 65728131683 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Fire exting.tubing, underfloor right | 1 | 65728131682 | +core | Shop at ECS Tuning | |||||
| For vehicles with Undercoating |
S187A=Yes |
|||||||||
| 02 | Fire exting.tubing, underfloor right | 1 | 65728230314 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Fire exting.tubing, engine compartm.rght | 1 | 65728244948 | ENDED | Shop at ECS Tuning | |||||
| 04 | Fire exting.tubing, radiator | 1 | 65728131688 | ENDED, +core | Shop at ECS Tuning | |||||
| 05 | Fire exting.tubing, engine compartment | 1 | 65728131684 | ENDED, +core | Shop at ECS Tuning | |||||
| 06 | Fire exting.tubing, engine compartm.lft | 1 | 65728244949 | ENDED | Shop at ECS Tuning | |||||
| 07 | Fire exting.tubing, engine compartm.lft | 1 | 65728244947 | ENDED | Shop at ECS Tuning | |||||
| 08 | Fire exting.tubing, underfloor left | 1 | 65728131681 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with Undercoating |
S187A=Yes |
|||||||||
| 08 | Fire exting.tubing, underfloor left | 1 | 65728230313 | ENDED, +core | Shop at ECS Tuning | |||||
| 09 | T-connection piece | 3 | 65728109052 | Shop at ECS Tuning | ||||||
| 10 | Connection piece | 6 | 65728109051 | Shop at ECS Tuning | ||||||
| 12 | Temp.switch fire extinguisher rear | 1 | 61318370626 | Shop at ECS Tuning | ||||||
| 12 | Temp.switch fire extinguisher front | 3 | 61318371002 | Shop at ECS Tuning | ||||||
| For vehicles with Undercoating |
S187A=No |
|||||||||
| 13 | Temp.switch fire extinguisher center | 1 | 61318370625 | ENDED | Shop at ECS Tuning | |||||
