Safety belt front right for BMW 3 Series E46 330d (2004)

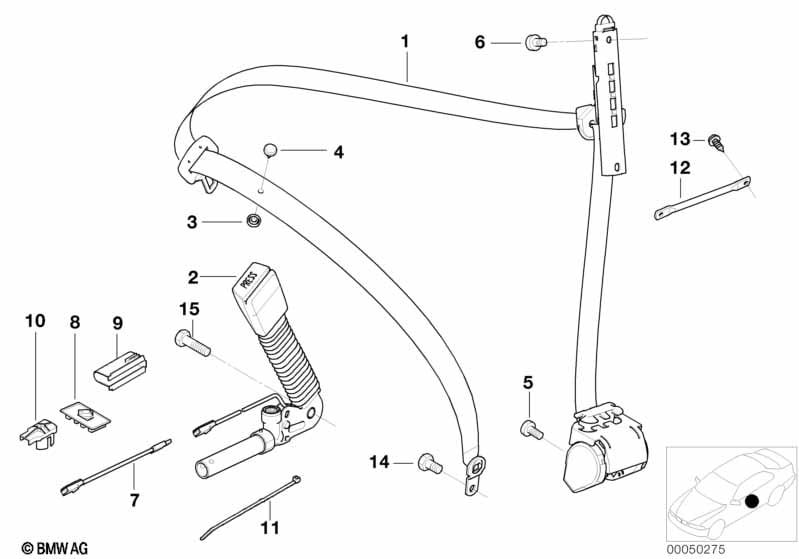

This Safety belt front right technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| For vehicles with deactivated driver's airbag |
=Yes |
|||||||||
| 01 | Rght frnt upper belt w/o force limiter | 1 | 72118240232 | $86.41 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with driver's airbag and deactivated driver's airbag |
=Yes =No |
|||||||||
| 01 | Upper belt, front right, overlength | 1 | 72118236240 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan and driver's airbag and deactivated driver's airbag |
L807A=Yes =Yes =No |
|||||||||
| 01 | Rght frnt upper belt with force limiter | 1 | 72117009858 | $98.51 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Upper belt, front right, overlength | 1 | 72117012688 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Lower belt with right belt tensioner | 1 | 09/1999 | 72119119552 | $73.52 | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 05 | Fillister head screw | M10X26 | 2 | 07146962565 | $0.73 | Shop at ECS Tuning | ||||
| 06 | Oval head screw | M10 X 22 | 4 | 07149148313 | $1.27 | Shop at ECS Tuning | ||||
| 07 | Wire, seat belt tensioner/seat plug | 2 | 09/1998 | 52108255704 | $13.91 | Shop at ECS Tuning | ||||
| 08 | Bracket, plug connection hellgrau | 2 | 61138099170 | $0.93 | Shop at ECS Tuning | |||||
| 09 | Covering cap | 2 | 61138372625 | $1.12 | Shop at ECS Tuning | |||||
| 12 | Bow | 2 | 72119117185 | $1.77 | Shop at ECS Tuning | |||||
| 13 | Hex head screw | ST4,8X13-C-U1-Z | 4 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | 2 | 07149148310 | $0.53 | Shop at ECS Tuning | |||||
| 15 | Oval head screw | M10 X 22 | 1 | 07149148313 | $1.27 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Safety belt front right?
- This technical diagram illustrates the Safety belt front right within the Restraint system and Accessories group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Rght frnt upper belt w/o force limiter (Part #72118240232).
- Which models use the hardware listed in this Safety belt front right?
- The hardware and components featured in the Safety belt front right are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the Rght frnt upper belt w/o force limiter (72118240232) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt front right assembly?
- Each item in the Safety belt front right corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Rght frnt upper belt w/o force limiter by locating its position on the schematic, which then links to the official BMW part number 72118240232 for the Restraint system and Accessories section.
