Airbag passenger and head airbag for BMW 7 Series E38 730i (1996)

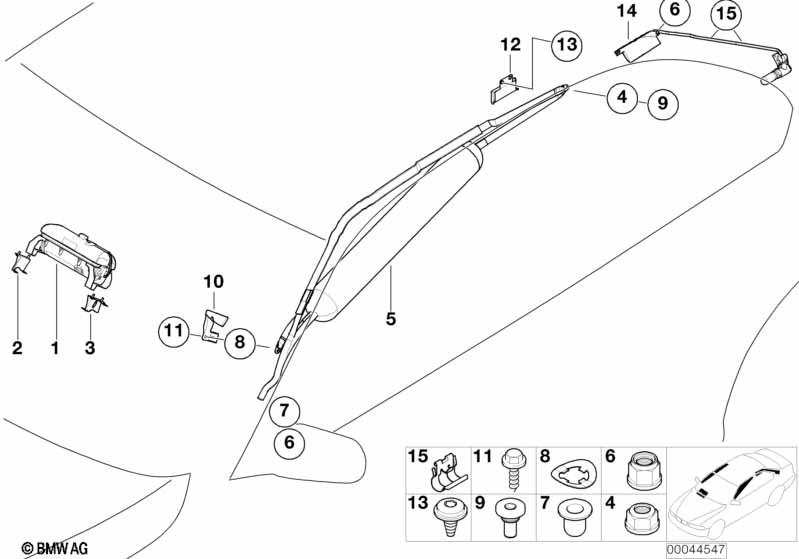

This Airbag passenger and head airbag technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Airbag unit front passenger side | 1 | 09/1998 | 72128231625 | $837.28 | ENDED | Shop at ECS Tuning | |||
| 02 | Interior module bracket | 1 | 51168163813 | $4.90 | Shop at ECS Tuning | |||||
| 03 | Exterior module bracket | 1 | 51168163814 | $3.87 | Shop at ECS Tuning | |||||
| 04 | Hex nut | BM6-8-ZNFE SW | 4 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M6 Z1-ZNNIV SI | X | 07146778500 | $0.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 730i Airbag passenger and head airbag?
- This technical diagram illustrates the Airbag passenger and head airbag within the Restraint system and Accessories group for the 7 Series E38 730i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Airbag unit front passenger side (Part #72128231625).
- Which models use the hardware listed in this Airbag passenger and head airbag?
- The hardware and components featured in the Airbag passenger and head airbag are specific to the 7 Series E38 730i produced during 1996. These technical specifications ensure that parts like the Airbag unit front passenger side (72128231625) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Airbag passenger and head airbag assembly?
- Each item in the Airbag passenger and head airbag corresponds to the numbered list below the illustration. For the 7 Series E38 730i, you can identify the Airbag unit front passenger side by locating its position on the schematic, which then links to the official BMW part number 72128231625 for the Restraint system and Accessories section.
