Side airbag for BMW 5 Series E39 528i (2000)

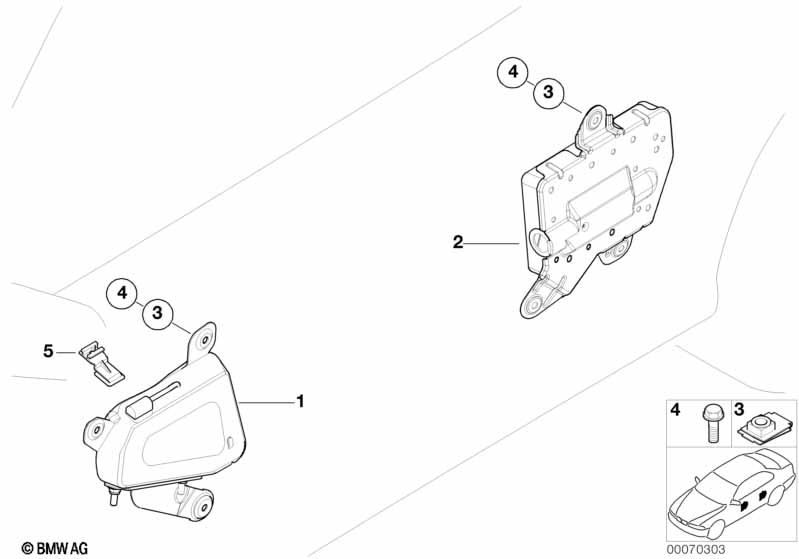

This Side airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Airbag unit left front door | 1 | 72128268331 | $195.64 | Shop at ECS Tuning | |||||
| 01 | Airbag unit right front door | 1 | 72128268332 | $195.64 | Shop at ECS Tuning | |||||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 02 | Airbag unit rear door left | 1 | 09/1997 | 09/2001 | 72127072621 | $696.36 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 02 | Airbag unit rear door right | 1 | 09/1997 | 09/2001 | 72127072622 | $696.36 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair cable ITS head airbag/ctrl unit | 1 | 09/1997 | 09/2001 | 61129118135 | $24.85 | Shop at ECS Tuning | |||
| 03 | C-clip nut | M6 | 6 | 07147151144 | $0.74 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X18 | 6 | 07119904058 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Bracket, airbag plug | 1 | 61138379197 | $0.68 | Shop at ECS Tuning | |||||
