Airbag passenger and head airbag for BMW 5 Series E39 528i (1998)

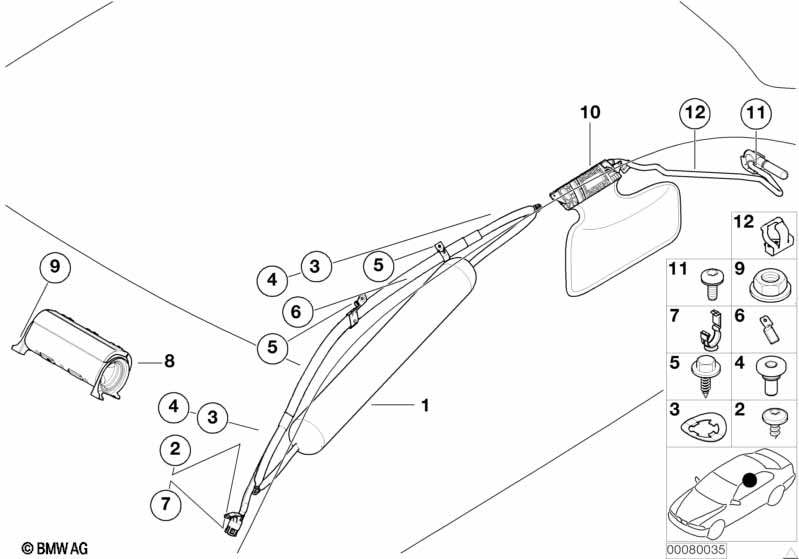

This Airbag passenger and head airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Head airbag, left | 1 | 09/2000 | 72127000009 | $362.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Head airbag, right | 1 | 09/2000 | 72127000010 | $362.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Holder | 1 | 09/2000 | 72127000006 | $1.14 | Shop at ECS Tuning | ||||
| only in conjunction with adapter cable 6112 6909892 Note Repair Manual REP-72 12 020! |
||||||||||
| 02 | Screw | M6X15,4 | 2 | 52108119276 | $0.58 | Shop at ECS Tuning | ||||
| 03 | Circlip | 4 | 72128241672 | $1.18 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | M6X8 | 4 | 72128241671 | $0.98 | Shop at ECS Tuning | ||||
| 05 | Hex head screw | ST4,2X13-C-Z2 | 8 | 07119916914 | $0.18 | Shop at ECS Tuning | ||||
| 06 | ITS head air bag bracket | 1 | 72128227993 | $0.50 | Shop at ECS Tuning | |||||
| 08 | Airbag unit front passenger side | 1 | 09/1998 | 72128231630 | $1160.58 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M6-10 ZN | 4 | 12/2003 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 09 | Self-locking hex nut | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Head airbag rear left | 1 | 72127000641 | $1059.62 | Shop at ECS Tuning | |||||
| 10 | Head airbag rear right | 1 | 72127000642 | $1059.62 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 10 | Head airbag rear left | 1 | 72127000641 | $1059.62 | Shop at ECS Tuning | |||||
| 10 | Head airbag rear right | 1 | 72127000642 | $1059.62 | ENDED | Shop at ECS Tuning | ||||
| 11 | Torx-bolt with washer | M6X12 | 4 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 11 | Torx-bolt with washer | M6X12 | 4 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
