Safety belt front right for BMW 3 Series E46 320Cd (2006)

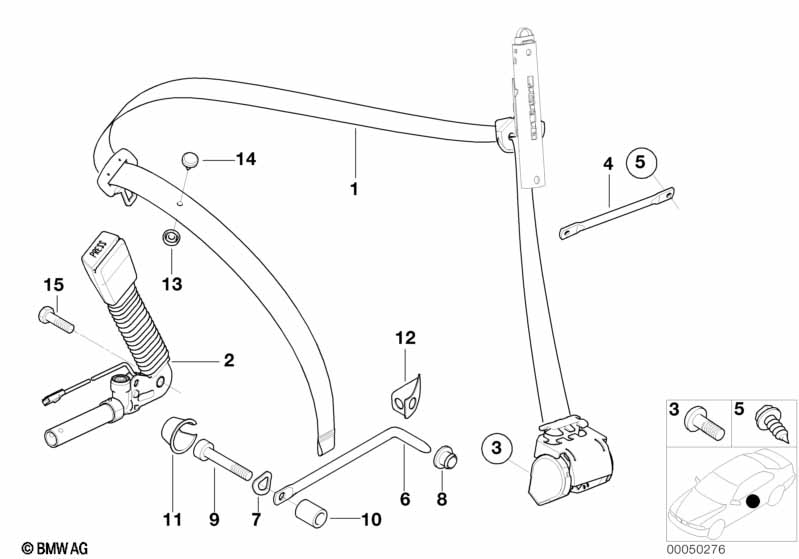

This Safety belt front right technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| Not suitable for deactivated passenger air bag |
||||||||||
| 01 | Rght frnt upper belt with force limiter | 1 | 11/2001 | 72117068244 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Rght frnt upper belt with force limiter | 1 | 72117919210 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan Not suitable for deactivated driver's airbag |
L807A=Yes |
|||||||||
| 01 | Upper belt | 1 | 11/2001 | 72117009860 | +core | Shop at ECS Tuning | ||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with National version japan Not suitable for deactivated passenger air bag |
L807A=Yes |
|||||||||
| 01 | Rght frnt upper belt with force limiter | 1 | 11/2001 | 72117068250 | $98.51 | +core | Shop at ECS Tuning | |||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with deactivated passenger air bag or deactivated driver's airbag |
=Yes =Yes |
|||||||||
| 01 | Upper belt,frt rgh,overlength without FL | 1 | 11/2001 | 72117068246 | $225.24 | Shop at ECS Tuning | ||||
| Upper belt w/o force limiter When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Lower belt with right belt tensioner | 1 | 72119119552 | $73.52 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Fillister head screw | M10X26 | 1 | 07146962565 | $0.73 | Shop at ECS Tuning | ||||
| 04 | Bow | 1 | 72119117185 | $1.77 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST4,8X13-C-U1-Z | 1 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Bar right | 1 | 72118220938 | $5.28 | Shop at ECS Tuning | |||||
| 07 | Wave washer | 1 | 07149148304 | ENDED | Shop at ECS Tuning | |||||
| 08 | Sealing grommet | 1 | 72118245381 | $1.78 | Shop at ECS Tuning | |||||
| 09 | Fillister-head screw | ISA M10X60 | 1 | 72118246457 | $1.37 | Shop at ECS Tuning | ||||
| 10 | Bush | 1 | 72118246456 | $3.98 | Shop at ECS Tuning | |||||
| 11 | Cap | 1 | 72112451569 | Shop at ECS Tuning | ||||||
| 12 | Covering cap | 1 | 72118173746 | $1.17 | Shop at ECS Tuning | |||||
| 15 | Oval head screw | M10 X 22 | 1 | 07149148313 | $1.27 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
