Airbag for BMW 3 Series E46 323i (2000)

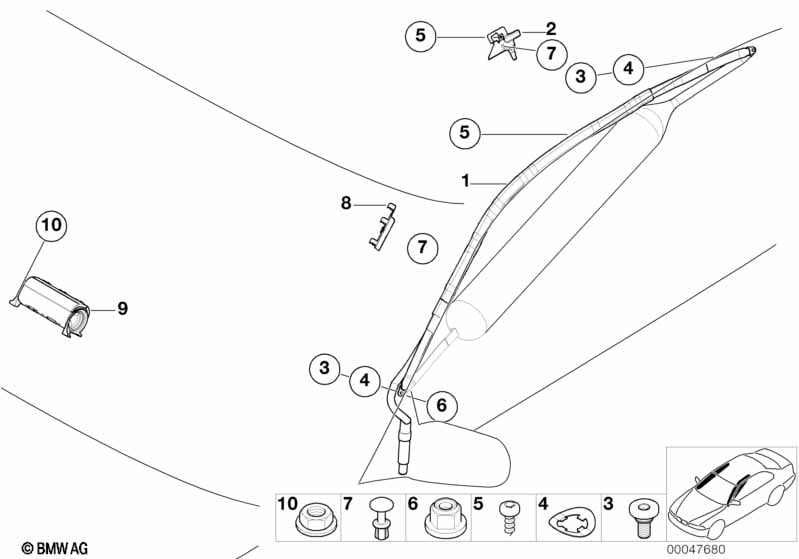

This Airbag technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Head airbag, right | 1 | 09/1998 | 72128268166 | $300.23 | Shop at ECS Tuning | ||||
| 01 | Head airbag, left | 1 | 09/1998 | 72128268165 | $300.23 | Shop at ECS Tuning | ||||
| Important! Note Repair Manual REP-72 12 020! |
||||||||||
| 01 | Head airbag, right | 1 | 09/1998 | 72128268166 | $300.23 | Shop at ECS Tuning | ||||
| Important! Note Repair Manual REP-72 12 020! |
||||||||||
| 02 | Left deflection plate, ITS | 1 | 51168238813 | $2.43 | Shop at ECS Tuning | |||||
| 02 | Right deflection plate, ITS | 1 | 51168238814 | $3.08 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M6X8 | 2 | 72128241671 | $0.98 | Shop at ECS Tuning | ||||
| 04 | Circlip | 2 | 72128241672 | $1.18 | Shop at ECS Tuning | |||||
| 06 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M6 Z1-ZNNIV SI | 2 | 07146778500 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | SCHWARZ | 2 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 08 | Cable holder | 1 | 72128250787 | $3.52 | Shop at ECS Tuning | |||||
| 09 | Airbag unit front passenger side | 1 | 09/1999 | 72126998950 | Shop at ECS Tuning | |||||
| 10 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
