Bracket, child seat fastening for BMW 3 Series E46 328i (2000)

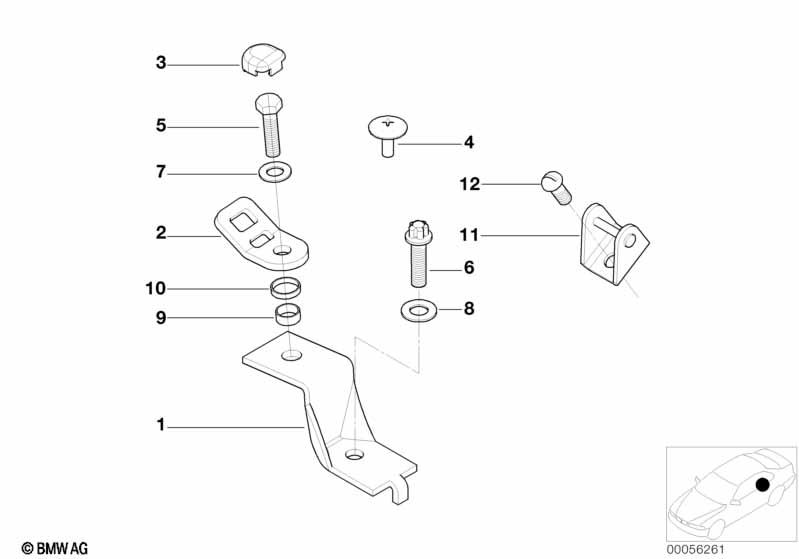

This Bracket, child seat fastening technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 11 | Holder Isofix, exterior | 2 | 72148255714 | $13.30 | Shop at ECS Tuning | |||||
| 11 | Holder Isofix, interior | 2 | 72148255713 | $13.30 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | M10X26 | 4 | 07146962565 | $0.73 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 328i Bracket, child seat fastening?
- This technical diagram illustrates the Bracket, child seat fastening within the Restraint system and Accessories group for the 3 Series E46 328i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Holder Isofix, exterior (Part #72148255714).
- Which models use the hardware listed in this Bracket, child seat fastening?
- The hardware and components featured in the Bracket, child seat fastening are specific to the 3 Series E46 328i produced during 2000. These technical specifications ensure that parts like the Holder Isofix, exterior (72148255714) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bracket, child seat fastening assembly?
- Each item in the Bracket, child seat fastening corresponds to the numbered list below the illustration. For the 3 Series E46 328i, you can identify the Holder Isofix, exterior by locating its position on the schematic, which then links to the official BMW part number 72148255714 for the Restraint system and Accessories section.
