Safety belt front left for BMW 3 Series E46 323Ci (2000)

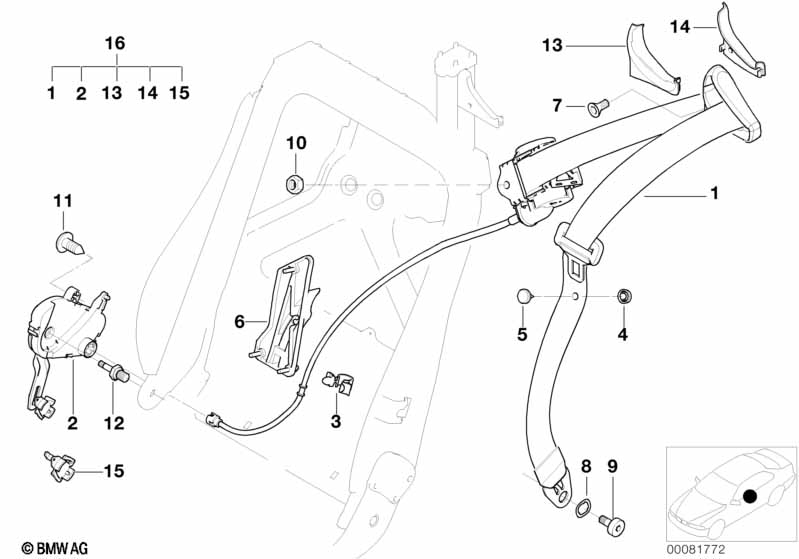

This Safety belt front left technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 02 | Coupler mechanism left | 1 | 52109113981 | Shop at ECS Tuning | ||||||
| 03 | Clip | 1 | 52107008593 | $0.35 | Shop at ECS Tuning | |||||
| 06 | Support | 1 | 52107008500 | $3.31 | ENDED | Shop at ECS Tuning | ||||
| 07 | Torx bolt | M6X10 T30 | 2 | 07149158703 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Bush | 1 | 52107008591 | $0.58 | Shop at ECS Tuning | |||||
| 09 | Oval head screw | M10 X 22 | 1 | 07149148313 | $1.27 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M10-8 | 1 | 07119906478 | $0.58 | Shop at ECS Tuning | ||||
| 11 | Fillister head self-tapping screw | ST4,2X17 | 1 | 07146977362 | $1.09 | Shop at ECS Tuning | ||||
| 12 | Threaded bolt | 1 | 07149168392 | $1.94 | Shop at ECS Tuning | |||||
| 13 | Covering front | SCHWARZ | 1 | 52108267426 | $2.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Covering rear | SCHWARZ | 1 | 52108267430 | $2.24 | Shop at ECS Tuning | ||||
| 14 | Covering rear | SCHWARZ | 1 | 52108267430 | $2.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Covering front | SCHWARZ | 1 | 52108267426 | $2.24 | Shop at ECS Tuning | ||||
| 15 | Connecting elements | 1 | 12/2004 | 52107011734 | $1.14 | Shop at ECS Tuning | ||||
| 16 | Upper belt front left | 1 | 72117042317 | $225.24 | Shop at ECS Tuning | |||||
| Important! Note Repair Manual REP-72 11 030! |
||||||||||
| 16 | Upper belt front left | 1 | 72118202595 | $182.81 | Shop at ECS Tuning | |||||
| Important! Note Repair Manual REP-72 11 030! When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
