Safety belt rear for BMW 3 Series E46 320Ci (2006)

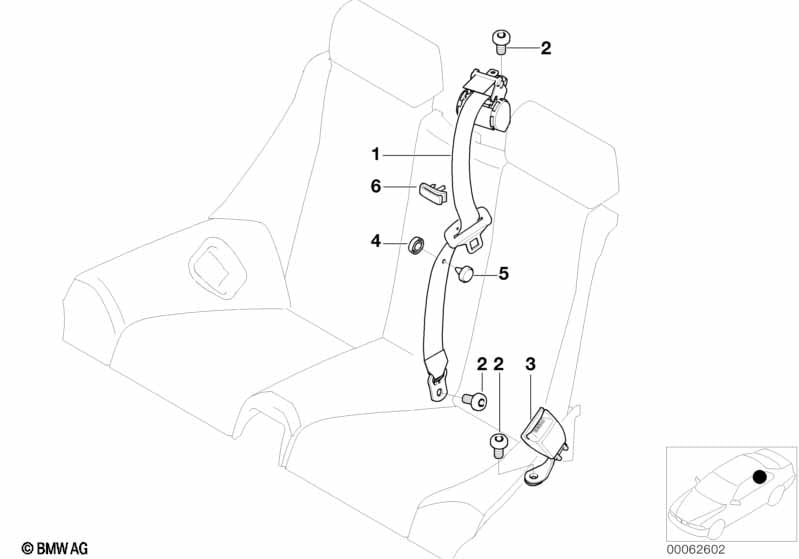

This Safety belt rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Rear upper belt without child protection | 2 | 72118261029 | Shop at ECS Tuning | ||||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Fillister head screw | M10X26 | 6 | 07146962565 | $0.73 | Shop at ECS Tuning | ||||
| 03 | Lower belt rear left | 1 | 72117007747 | $35.54 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 03 | Lower belt rear right | 1 | 72117007748 | $35.54 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 06 | Seat belt guide | 2 | 52107009662 | $2.81 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320Ci Safety belt rear?
- This technical diagram illustrates the Safety belt rear within the Restraint system and Accessories group for the 3 Series E46 320Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Rear upper belt without child protection (Part #72118261029).
- Which models use the hardware listed in this Safety belt rear?
- The hardware and components featured in the Safety belt rear are specific to the 3 Series E46 320Ci produced during 2006. These technical specifications ensure that parts like the Rear upper belt without child protection (72118261029) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety belt rear assembly?
- Each item in the Safety belt rear corresponds to the numbered list below the illustration. For the 3 Series E46 320Ci, you can identify the Rear upper belt without child protection by locating its position on the schematic, which then links to the official BMW part number 72118261029 for the Restraint system and Accessories section.
