Front safety belt mounting parts for BMW 5 Series E60 523Li (2023)

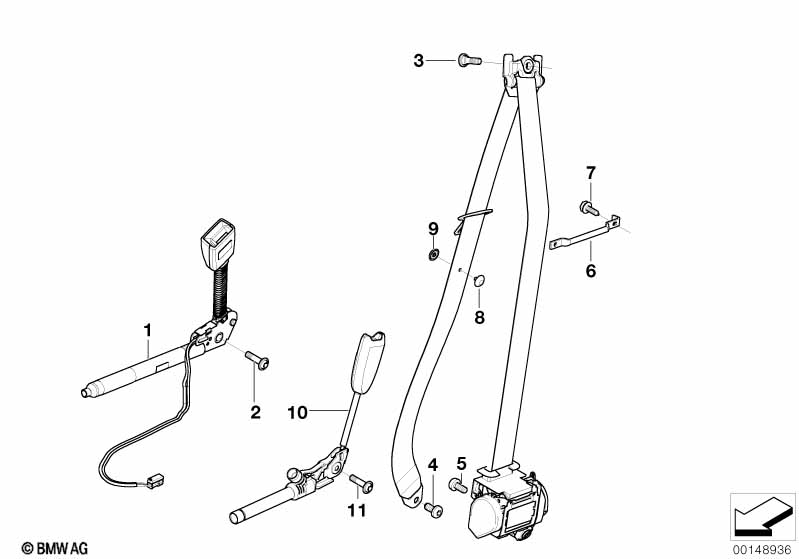

This Front safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention Parts Manager. Per NHTSA regulations, please provide the applicable installation instructions to the customer when delivering the safety belt, and include all necessary information, e.g., tightening torques. Please refer to the BMW / MINI / Rolls- Royce Bulletins 000321 / 000221 / A0521, respectively. |
|||||||||
| 01 | Lower belt with left belt tensioner | 1 | 72117210887 | $122.22 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 01 | Lower belt with right belt tensioner | 1 | 72117210888 | $122.22 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| 02 | Fillister head screw | 2 | 07147125115 | $1.25 | ENDED | Shop at ECS Tuning | ||||
| 03 | Socket head cap screw with shoulder | 2 | 72116985527 | $6.70 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Corrugated washer | 2 | 72116988009 | $1.84 | Shop at ECS Tuning | |||||
| 04 | Socket head cap screw with shoulder | M10X30 | 2 | 07146989598 | $1.33 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M10X26 | 2 | 07146962565 | $0.73 | Shop at ECS Tuning | ||||
| 06 | Sliding bracket | 2 | 72117064872 | $2.15 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sheet metal screw | ST5,5X13 SW | 4 | 07119901338 | $0.29 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
