Airbag for BMW 5 Series E60 525d (2007)

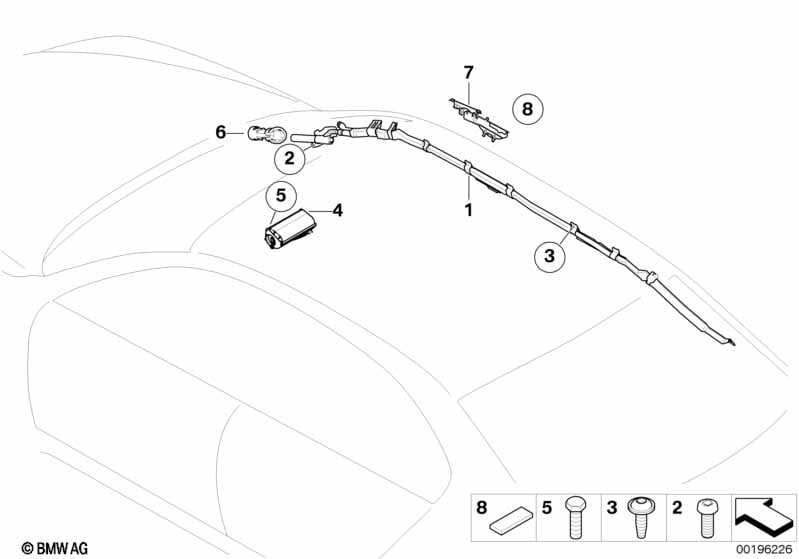

This Airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Head airbag, left | 1 | 72129147337 | $300.23 | +core | Shop at ECS Tuning | ||||
| 01 | Head airbag, right | 1 | 72129147338 | $300.23 | +core | Shop at ECS Tuning | ||||
| 02 | Fillister head screw | M6X16 | 2 | 07147131792 | $1.16 | Shop at ECS Tuning | ||||
| 03 | Oval-head screw, shoulder, self-thread | M5X28 ISA | 14 | 07147195762 | $0.33 | Shop at ECS Tuning | ||||
| 04 | Airbag unit front passenger side | 1 | 72127039708 | $618.43 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X18-U2-ZNS3 | 4 | 07119902933 | Shop at ECS Tuning | |||||
| 06 | Grommet, alternator | 2 | 72127110725 | $0.93 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525d Airbag?
- This technical diagram illustrates the Airbag within the Restraint system and Accessories group for the 5 Series E60 525d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Head airbag, left (Part #72129147337).
- Which models use the hardware listed in this Airbag?
- The hardware and components featured in the Airbag are specific to the 5 Series E60 525d produced during 2007. These technical specifications ensure that parts like the Head airbag, left (72129147337) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Airbag assembly?
- Each item in the Airbag corresponds to the numbered list below the illustration. For the 5 Series E60 525d, you can identify the Head airbag, left by locating its position on the schematic, which then links to the official BMW part number 72129147337 for the Restraint system and Accessories section.
