Airbag for BMW 5 Series E60 523Li (2023)

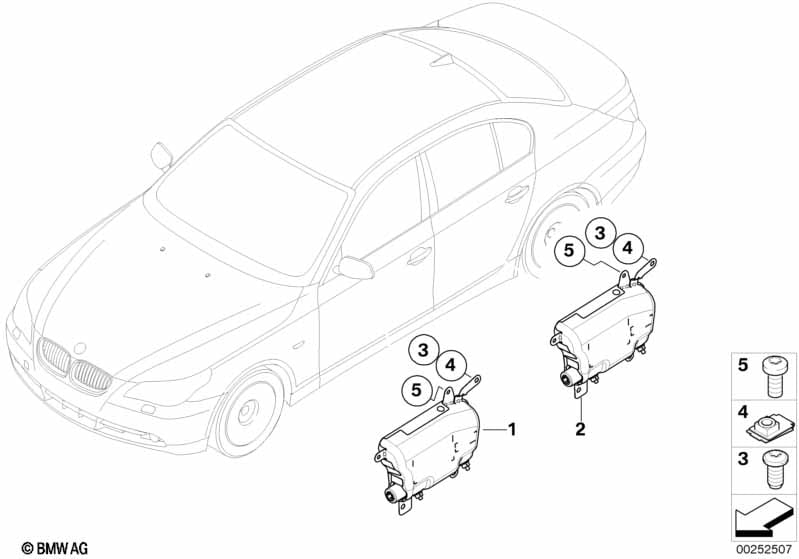

This Airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Screws for installation on door panel are included in the delivery of the door panel. |
||||||||||
| 01 | Airbag unit right front door | 1 | 72126963022 | $195.64 | Shop at ECS Tuning | |||||
| 01 | Airbag unit left front door | 1 | 72126963021 | $195.64 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Side airbags for rear passengers Screws for installation on door panel are included in the delivery of the door panel. |
S261A=Yes |
|||||||||
| 02 | Airbag unit rear door left | 1 | 72127034059 | $195.64 | Shop at ECS Tuning | |||||
| 02 | Airbag unit rear door right | 1 | 72127034060 | $195.64 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | 4 | 51417066337 | $0.47 | Shop at ECS Tuning | |||||
| 04 | C-clip nut | M6 | 4 | 07142452506 | Shop at ECS Tuning | |||||
| 04 | Clip | 4 | 72128233294 | $0.61 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M5X10 | 16 | 07147120342 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
