Child seat mount for BMW 5 Series E60 520i (2023)

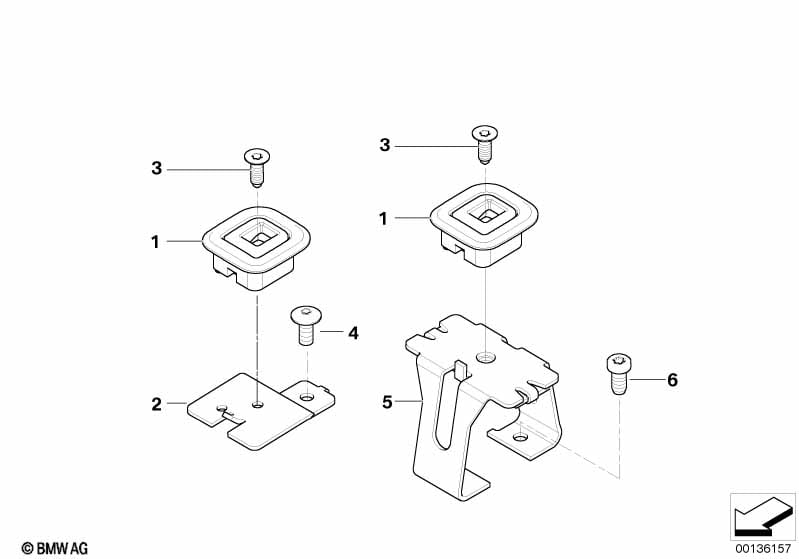

This Child seat mount technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support, child seat | SCHWARZ | 3 | 72147040410 | Shop at ECS Tuning | |||||
| For vehicles with nacht-blau |
SF=Yes |
|||||||||
| 01 | Support, child seat | NACHTBLAU | 3 | 72147051791 | $27.78 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 01 | Support, child seat | TRÜFFELBRAUN | 3 | 72147117199 | $27.78 | ENDED | Shop at ECS Tuning | |||
| For vehicles with flanell-grau |
FA=Yes |
|||||||||
| 01 | Support, child seat | FLANELLGRAU | 3 | 72147051788 | $27.78 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with basalt-grau |
BM=Yes |
|||||||||
| 01 | Support, child seat | BASALTGRAU | 3 | 72147051790 | $27.78 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 01 | Support, child seat | BEIGE 3 | 3 | 72147255423 | $28.62 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 01 | Support, child seat | GRAU | 3 | 72147117198 | $27.78 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Support, child seat | SCHWARZ | 2 | 72147040410 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia and flanell-grau |
L810A=Yes FA=Yes |
|||||||||
| 01 | Support, child seat | FLANELLGRAU | 2 | 72147051788 | $27.78 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with National version Australia and trüffel-braun |
L810A=Yes TE=Yes |
|||||||||
| 01 | Support, child seat | TRÜFFELBRAUN | 2 | 72147117199 | $27.78 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia and beige 3 |
L810A=Yes BA=Yes |
|||||||||
| 01 | Support, child seat | BEIGE 3 | 2 | 72147255423 | $28.62 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and basalt-grau |
L810A=Yes BM=Yes |
|||||||||
| 01 | Support, child seat | BASALTGRAU | 2 | 72147051790 | $27.78 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with National version Australia and nacht-blau |
L810A=Yes SF=Yes |
|||||||||
| 01 | Support, child seat | NACHTBLAU | 2 | 72147051791 | $27.78 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with National version Australia and grey |
L810A=Yes AD=Yes |
|||||||||
| 01 | Support, child seat | GRAU | 2 | 72147117198 | $27.78 | ENDED | Shop at ECS Tuning | |||
| 02 | Holder | 3 | 72147067105 | $3.37 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 02 | Holder | 3 | 72147067105 | $3.37 | Shop at ECS Tuning | |||||
| 03 | Torx-countersunk head screw | ISA M8X25 | 3 | 07146980129 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Torx-bolt with washer | ISA M8X12 | 3 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 04 | Torx-bolt with washer | ISA M8X12 | 3 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
